DEBIX Model C i.MX 93 Single Board Computer [Coming Soon]

DEBIX Model C

DEBIX Model C is DEBIX's first board utilizing NXP i.MX 93, a power-optimized processor rating up to 1.7GHz with only 1 watt of power at full load consumption, and the Arm Ethos™-U65 microNPU enables developers to create more capable ML applications.

  • Overview

    DEBIX Model C is DEBIX's first board utilizing NXP i.MX 93, a power-optimized processor rating up to 1.7GHz with only 1 watt of power at full load consumption, and the Arm Ethos™-U65 microNPU enables developers to create more capable ML applications.

    Engineered to deliver more energy-efficient and cost-effective solutions for intelligent edge computing, DEBIX Model C mainly provides 2 x RJ45 network ports (one supports TSN), 2.4GHz WIFI, BT5.0, 2 x USB 2.0, 1 x single-channel LVDS, 1 x DSI, 1 x CSI and 40Pin expansion headers, targeting IoT edge, contactless HMI, smart home, building control and industrial applications.


    Compatibility


    DEBIX Model C will be compatible with the existing power supply, PoE module, Camera 200A/500A/1300A and DEBIX 5"/7''/8"/10.1" LCD monitors.

  • Main Features
    • Utilizes NXP's latest power-optimized processor i.MX 93, 1.7GHz, 1W (extended industrial grade, industrial grade and consumer grade processors for options)
    • Advanced security with integrated EdgeLock® secure enclave
    • Ethos-U65 microNPU to bring MCU-class ML efficiency
    • General-purpose Cortex-M33 up to 250MHz for real-time and low-power processing
    • Supports system switching between Ubuntu 20.04 Server, Yocto 4.2, Debian 10 Server and Windows 10 IoT
    • Supports cooperative work on FreeRTOS and Linux dual systems
Specification
System
CPU

NXP i.MX9352, 2 x Arm® Cortex®-A55 @1.7 GHz, 1 x Arm® Cortex®-M33 @250MHz, 1 x Arm® Ethos™ U-65 microNPU.

(i.MX 93 series CPU optional)

Memory 1GB LPDDR4 (2GB optional)
Storage Default: Micro SD card (Onboard 8GB/16GB/32GB/64GB/128GB/256GB eMMC optional)
OS

Ubuntu 20.04 Server, Yocto 4.2-L6.1.22_2.0.0, Windows 10 IoT Enterprise

Note: Model C with 2GB LPDDR4 supports Windows 10 IoT Enterprise

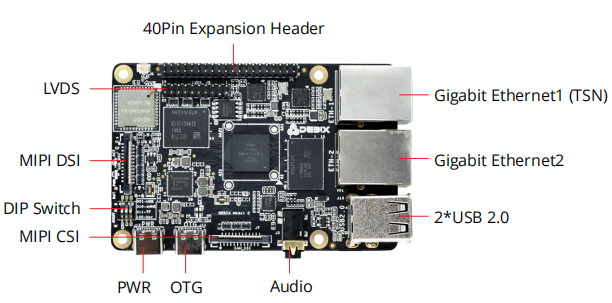

I/O Interfaces
Gigabit Network 1 x RJ45, support POE power supply (need POE power device module)
1 x RJ45 (POE power supply is not supported)
WIFI & BT 2.4GHz WIFI IEEE 802.11b/g/n, BT5.0
USB 2 x USB 2.0 Host Type-A
1 x USB 2.0 OTG Type-C
Audio 1 x Headphone and Mic combo port
Expansion
40-Pin Double-Row Headers
(1) 1 x I2C, 2 x USB 2.0 Host, 4 x 12bit ADC in, 1 x UART for system debug
(2) 6 x GPIO for default, can be reused as PWM, UART, SPI, I2C and CAN through software configuration.
(3) 5V power supply in/out, 1.8V/3.3V@300mA power out, system reset, ON/OFF
LVDS 1 x 720p60 LVDS, single channel 8bit, 2 x 10-Pin double-row headers
MIPI CSI 1 x 1080p60 MIPI CSI, support 2-lane 24-Pin 0.5mm Pitch FPC socket
MIPI DSI 1 x 1080p60 MIPI DSI, support 4-lane 24-Pin 0.5mm Pitch FPC socket
Power Supply
Power Supply DC 5V/2A Type-C
Mechanical & Environmental

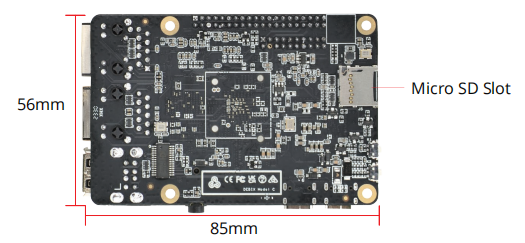

Size

85.0mm x 56.0mm

Operating Temp.
-20℃ to 70℃ (-40℃ to 85℃ optional)


Documents


DEBIX Model C Performance Test Results

DEBIX Model C Product Brief

DEBIX Model C 3D

DEBIX Model C Mechanical Drawing

DEBIX Model C Connectors Reduced Schematics

DEBIX Model C GPIO Function List

J1 40Pin Double-Row Header

J6 MIPI DSI Connector

J7 MIPI CSI Connector

J8 LVDS Connector.pdf

J9 WiFi Antenna Connector.pdf
