DEBIX Model A Industrial Single Board Computer

DEBIX Model A

OKdo Technology and Polyhex Technology jointly launch DEBIX Model A, an industrial grade single board computer to bring you faster speed and more powerful performance, featuring 2.3 TOPS NPU, complete software development and wide temperature range.

  • Overview

    OKdo Technology and Polyhex Technology jointly launch DEBIX Model A, an industrial grade single board computer to bring you faster speed and more powerful performance. Based on quad core i.MX 8M Plus with 2.3 TOPS NPU, DEBIX Model A with complete software development and rich I/O ports is ready and capable for direct applications in industry 4.0, IoTs, smart cities and multimedia.


    DEBIX Model A features industrial grade components and wide CPU temperature range of -40℃ to 105℃ to work stably in extreme environment. Its DDR inline ECC design and 14 FinFET process ensure high industrial reliability. Combining Gigabit network, 2.4GHz & 5GHz Wifi and Bluetooth 5.0, it provides robust network control of peripherals in industrial control, industrial automation and IoTs. With quad core ARM Cortex-A53 CPU up to 1.8GHz and 2GB/4GB/8GB LPDDR4, it is able to perform sophisticated processing tasks.


    Compliance


    CE, RoHS, UKCA, FCC, FCC ID-38CC (ND), FCC ID-CC, KC, MIC/TELEC, C-Tick, RCM Declaration

  • Main Features
    • Powerful industrial grade single board computer built to meet the needs of industry 4.0, IoTs, smart cities and multimedia

    • Complete software development including Android 11/ Yocto-L5.10.72_2.2.0/ Ubuntu 20.04/ Windows 10 IoT Enterprise operating system and basic software for fast and direct applications

    • Gigabit network, 2.4GHz & 5GHz Wifi, Bluetooth 5.0, high-speed USB 3.0 and PCIe support connection and control of a variety of industrial peripherals

    • Advanced multimedia capabilities include 1080p60 video encode and decode (including H.265, H.264), 3D/2D graphic acceleration, and multiple audio and voice functionalities
Specification
System
CPU

NXP i.MX 8M Plus (default), 4 x ARM Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz.

(i.MX 8M Plus series CPU optional)

Memory 2GB LPDDR4 (4GB/8GB optional)
Storage Default: Micro SD card (Onboard 8GB/16GB/32GB/64GB/128GB eMMC optional)
Operating System Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 20.04, Windows 10 IoT Enterprise
Note: Model A with LPDDR4 from 4GB supports Windows 10 IoT Enterprise, we recommend the 8GB LPDDR4 version

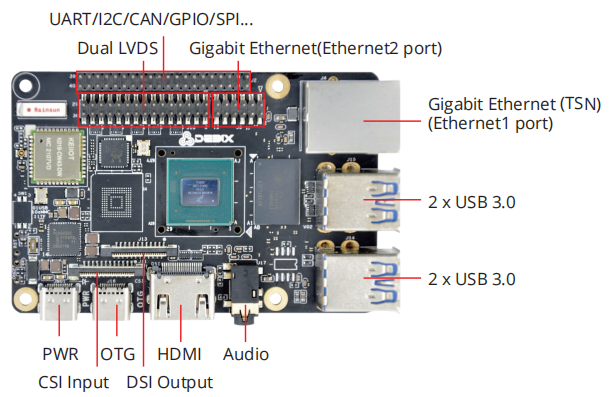

I/O Interfaces
Gigabit Network

1 x RJ45, support POE power supply (need POE power device module)

1 x pin header (without network transformer)

WIFI & BT 2.4GHz & 5GHz WIFI IEEE 802.11a/b/g/n/ac, BT5.0
USB 4 x USB 3.0 Host Type-A, 1 x USB 2.0 OTG Type-C
Audio 1 x Headphone and Mic combo port
HDMI 1 x HDMI OUT
Expansion
40-Pin Double-Row Headers

(1) 3 x UART, 2 x I2C, 2 x SPI, 2 x CAN, 6 x GPIO for default, can be reused as I2S, PWM, SPDIF and GPIO through software configuration.

(2) 5V power supply, system reset, ON/OFF

LVDS 1 x LVDS, single & dual channel 8bit, double-row pin headers
MIPI CSI 1 x MIPI CSI, support 4-lane 24-Pin 0.5mm Pitch FPC socket
MIPI DSI 1 x MIPI DSI, support 4-lane 24-Pin 0.5mm Pitch FPC socket
PCIe 1 x PCIe, support PCIe x1, 19-Pin 0.3mm Pitch FPC socket
Power Supply
Power Supply DC 5V/3A Type-C
Mechanical & Environmental

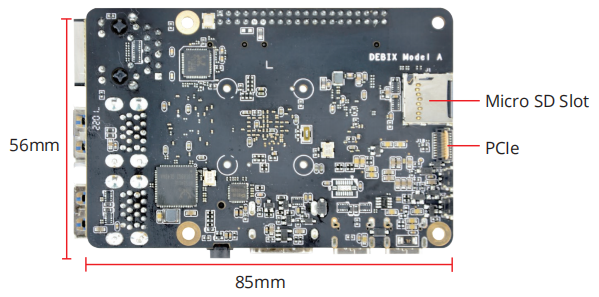

Size 85.0mm x 56.0mm
Operating Temp. -20℃ to 70℃


Product Version

DEBIX Model A has two versions, the standard and SE version. Their differences lie in the CPU modules, see the table below for details.

Version NPU VPU ISP HiFi 4
DEBIX Model A Standard 1 1 1 1
DEBIX Model A SE N/A N/A N/A N/A


Documents

DEBIX Performance Test Results

DEBIX Model A Product Brief

DEBIX User Manual

DEBIX Model A Schematics

DEBIX Model A Connectors Reduced Schematics

DEBIX Model A mechanical drawing

DEBIX Model A 3D.stp

Documentation including hardware and configuration

Reduced GPIO Function List

PCIe Connector FH26W-19S-0.3SHW(97)

DEBIX Model A Ethernet2 Schematics

DEBIX Model A Antenna Connector
