DEBIX Model A LoRa Board

EMB-AS-03

DEBIX Model A LoRa Board is compatible with DEBIX Model A/B and provides a Mini PCIe interface for LoRa Module. LoRa enables long-range transmissions with low power consumption.

  • Overview

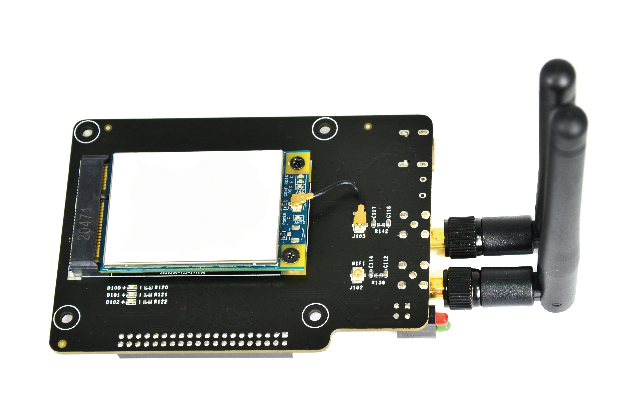

    DEBIX Model A LoRa Board is compatible with DEBIX Model A/B and provides a Mini PCIe interface for LoRa Module. LoRa enables long-range transmissions with low power consumption. In addition to a LoRa Antenna Connector, it also has a Wifi Antenna Connector and Bluetooth Pairing Button.

    Compatibility

    DEBIX Model A, DEBIX Model B

    Compliance

    CE, RoHS, UKCA, FCC, C-Tick, RCM Declaration

  • Main Features
    • Provides a Mini PCIe interface for LoRa Module

    • Larger wireless network coverage with lower power consumption

    • With LoRa antenna and Wifi antenna connector

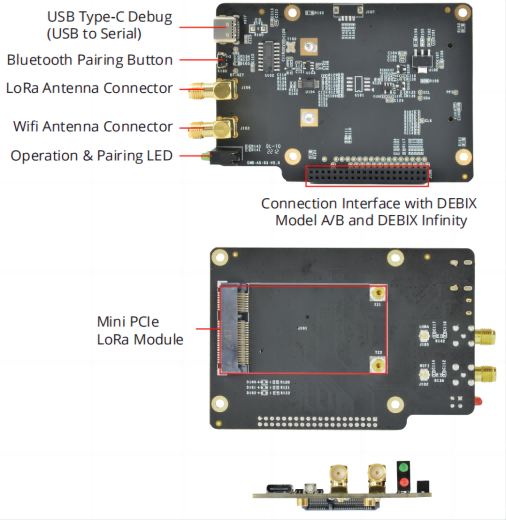

Specification

I/O Interfaces
USB 1 x USB Type-C Debug (USB to Serial)
Mini PCIe 1 x Mini PCIe (LoRa Module)
Buttons 1 x Bluetooth Pairing Button
LED 1 x Operation Indicator, 1 x Pairing Indicator
External Antenna 1 x LoRa Antenna Connector, 1 x Wifi Antenna Connector
EEPROM
1 x 2Kbit EEPROM
Clipper Chip
1 x Secure Element, eg.ATECC608


Documents


DEBIX Model A LoRa Board Product Brief

DEBIX Model A LoRa Board User Manual

Mechanical Drawing

Schematics
