DEBIX I/O Board

EMB-AS-E01

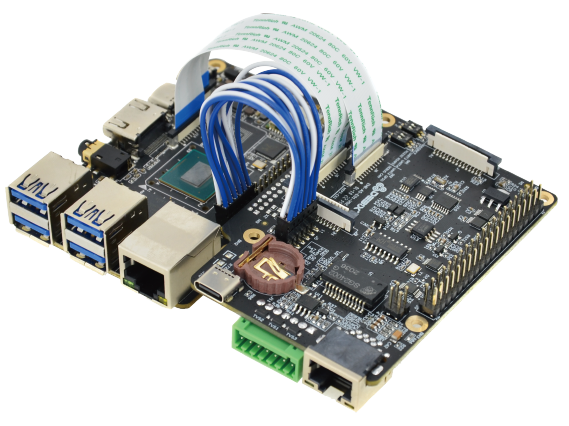

DEBIX I/O Board is an add-on board designed for DEBIX Model A, DEBIX Model B and DEBIX Infinity. It adds one RJ45 Gigabit network interface and PoE capability to your DEBIX Model A/B and DEBIX Infinity.

  • Overview

    DEBIX I/O Board is an add-on board designed for DEBIX Model A, DEBIX Model B and DEBIX Infinity SBC. It adds one Gigabit network interface and PoE capability to your DEBIX Model A/B and DEBIX Infinity. It comes with RS232, RS485 and CAN Transceiver to allow connection with more industrial equipment, and its strong expansion ability brings unlimited possibilities.

    Compatibility

    DEBIX Model A, DEBIX Model B, DEBIX Infinity

    Compliance

    CE, RoHS, UKCA, FCC, C-Tick, RCM Declaration

  • Main Features
    • Adds one RJ45 Gigabit network interface and PoE function

    • Allow connection with industrial peripherals through RS232, RS485 and CAN transceiver

    • High scalability including MIPI CSI, MIPI DSI and GPIO pin headers, etc

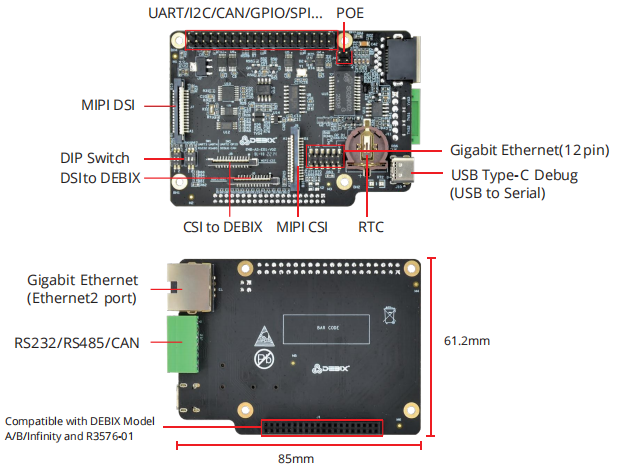

Specification

I/O Interfaces

Gigabit Ethernet

1x Gigabit Ethernet port

POE Supported (Compatible with POE power device module)

USB

1 x USB Type-C Debug (USB to Serial)

RTC

1 x RTC

Serial Ports

1 x RS232

1 x RS485

CAN

1 x CAN Transceiver

DIP Switch

2 x 2bit DIP Switch (used for selecting USB-Debug, RS232, RS485 and CAN)

Expansion

40-Pin Double-Row Headers

3 x UART, 2 x I2C, 2 x SPI, 2 x CAN, 6 x GPIO for default, can be reused as I2S, PWM, SPDIF and GPIO through software configuration.

MIPI CSI

1 x MIPI CSI

MIPI DSI

1 x MIPI DSI

EEPROM

1 x 2Kbit EEPROM

Accessories

Cables

2 x Flexible flat cable for DSI & CSI

1 x Female to female jumper wire for Ethernet

Power Supply

Power Input

DC 5V/500mA

Mechanical

Size(L x W)

85.0mm x 61.2mm (±0.5mm)

Net Weight

31g (±0.5g)

Gross Weight

62g (±0.5g)



Documents


DEBIX I/O Board Product Brief

DEBIX I/O Board User Manual

Schematics

Mechanical Drawing

RS232/RS485/CAN Connector Specification

Reduced GPIO Function List
