DEBIX SOM A i.MX 8M Plus Core Board

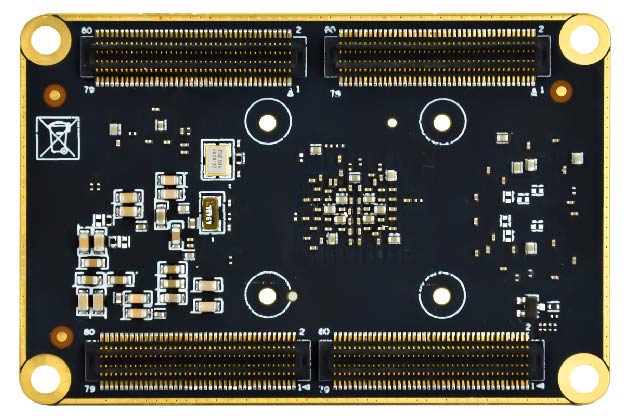

DEBIX SOM A

The first DEBIX core board with industrial or commercial grade CPU options

  • Overview

    DEBIX SOM A is the first System on Module product of the DEBIX series. As with the DEBIX Model A SBC, it is based on NXP i.MX 8M Plus CPU with a 2.3 TOPS NPU, which brings us the same powerful system performance. This core board design has some notable benefits, such as design reutilization, reduction of development time of the carrier boards, and flexible integration into various embedded systems.


    Compliance

    CE, RoHS, UKCA, FCC, PSE, C-TickRCM Declaration

  • Main Features
    • Powerful industrial grade core board built to meet the needs of industry 4.0, IoTs, smart cities and multimedia
    • Complete software development including Android 11/ Yocto-L5.10.72_2.2.0/ Ubuntu 20.04/ Windows 10 IoT Enterprise operating system and basic software for fast and direct applications
    • Real-time control with Cortex-M7. Robust control networks supported by CAN FD and dual Gigabit Ethernets, one of which supports Time Sensitive Networking (TSN)
    • Dual Image Signal Processors (ISP) and dual camera inputs for an efficient advanced vision system
    • Advanced multimedia capabilities include 1080p60 video encode and decode (including H.265, H.264), 3D/2D graphic acceleration, and multiple audio and voice functionalities
Specification

System
CPU

NXP i.MX 8M Plus (default), 4 x Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz.

(i.MX 8M Plus series CPU optional)

Memory 2GB LPDDR4 (1GB/4GB optional, while 8GB is optional when operating temp. is -20°C to 70°C)
Storage Onboard 16GB eMMC (8GB/32GB/64GB/128GB optional)
Operating System Ubuntu20.04, Android11, Yocto-L5.10.72_2.2.0, Windows 10 IoT Enterprise
Note: SOM A with LPDDR4 from 4GB supports Windows 10 IoT Enterprise, we recommend the 8GB LPDDR4 version
I/O Interfaces
Ethernet

2 x Gigabit Ethernet controller, one of them supports Time Sensitive Networking (TSN)

Display

1 x HDMI 2.0a, support 3840 x 2160 at 30Hz, 1920 x 1080 at 120Hz, 1920 x 1080 at 60Hz

1 x LVDS, support 4Lane and 8Lane

1 x MIPI DSI, support 2560 x 1080 at 60Hz

Camera 2 x MIPI CSI
Audio

Up to 6 x SAI (synchronous audio interface), HiFi4 DSP, 1 x SPDIF IN, 1 x  SPDIF OUT

(Note: 1 x SAI with 8 TX and 8 RX lanes, 1 x SAI with 4 TX and 4 RX lanes, 2 x SAI with 2 TX and 2 RX lanes, 2 x SAI with 1 TX and 1RX lane, all SAIs support I2S and AC97)

USB 2 x USB 3.0, configurable as device or host
UART Up to 4 x UART
I2C

Up to 6 x I2C, I2C2~I2C6 are exposed to the connectors (2 of the five I2Cs are multiplexed as SD1). I2C1 is not allowed to be configured.

SDIO 2 x SDIO
SPI Up to 3 x ECSPI
PCIe
1 x PCIe Gen3
CAN 2 x CAN
GPIO 13 x GPIO for default, other functional pins can be configured as GPIO through software
Power Supply
Input Voltage
3.5V~5V
Operating Temperature
Temp. Range -20℃~70℃ for default, -40℃~85℃ optional
Mechanical & Environmental
Connector 4 x Double-sided board-to-board connector (model number BB51024A-R80-10-32), 2 x 40pin/0.5mm pitch, matching sockets of various heights
Dimension 60mm(L) x 40mm(W) x 5.6mm(H)


Product Version

DEBIX SOM A has two versions, the standard and SE version. Their differences lie in the CPU modules, see the table below for details.

Version NPU VPU ISP HiFi 4
DEBIX SOM A Standard 1 1 1 1
DEBIX SOM A SE N/A N/A N/A N/A

Documents

DEBIX Performance Test Results

DEBIX SOM A Product Brief

DEBIX SOM A User Guide

DEBIX SOM A I/O Board User Guide

DEBIX Windows 10 IoT Enterprise User Manual

DEBIX SOM A and I/O Board Applications Document

DEBIX SOM A STEP File

Board-to-board Connector Plug

Board-to-board Connector Socket

DEBIX SOM A Board-to-board Connector Schematics

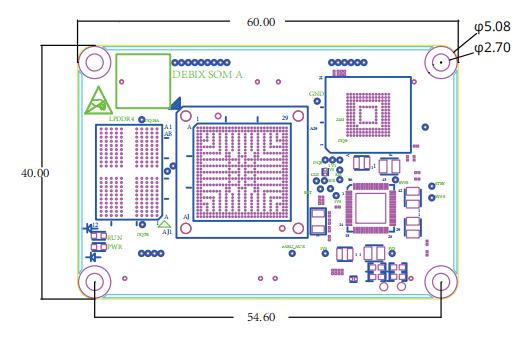

DEBIX SOM A Mechanical Drawings
