Polyhex 24PIN-Pai 15PIN FPC

24PIN-Pai 15PIN FPC

Product description
Specifications

Overview

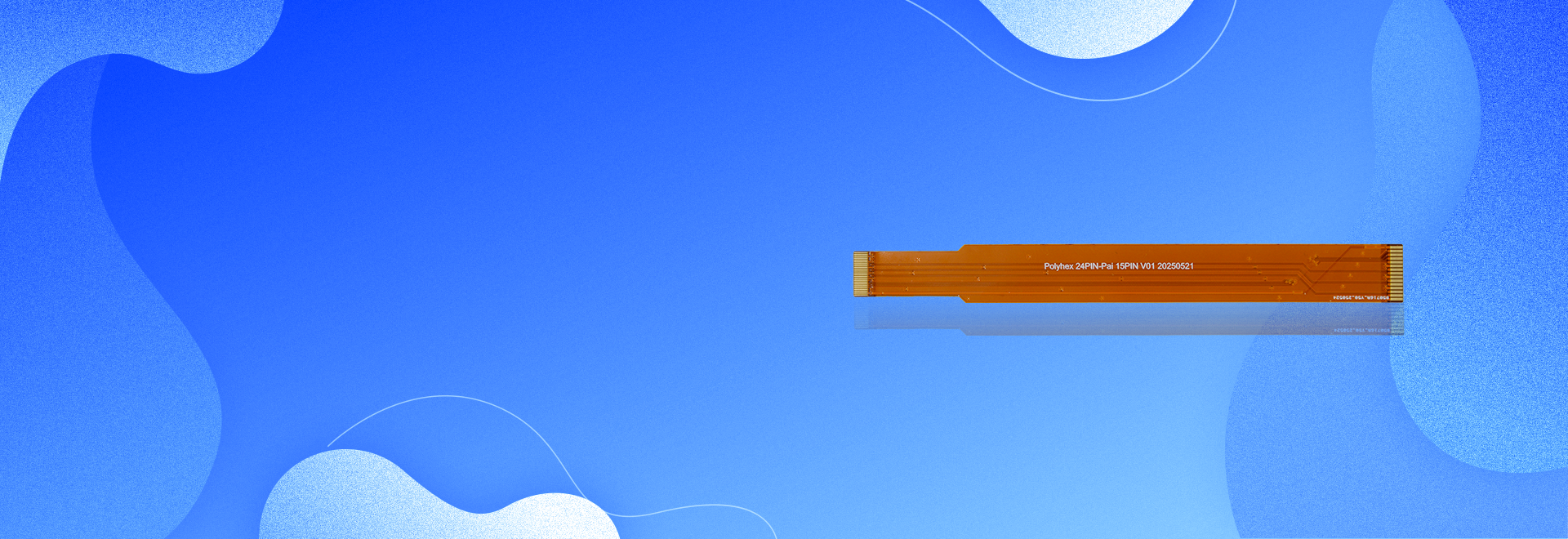

Engineered for seamless connection! This FPC cable is the ideal bridge between the DEBIX 24pin/0.5mm pitch MIPI CSI connector and the standard Raspberry Pi camera port (15pin/1mm pitch FPC).

Compatibility

Compatible with the MIPI CSI connectors on the DEBIX Model A, DEBIX Model B, DEBIX Model C, DEBIX Infinity, and DEBIX R3576-01
Main Features

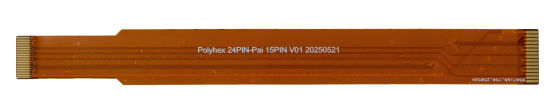

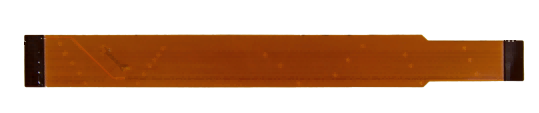

This FPC cable is specifically designed to seamlessly connect a DEBIX 24-pin, 0.5mm pitch MIPI CSI connector to a standard Raspberry Pi camera port (15-pin, 1mm pitch FPC). With a total length of 15cm and an insertion thickness of 0.35-0.4mm, it ensures a secure and reliable connection. Both connectors feature a same-side contact orientation for straightforward integration.

Specification


Pin Count & Pitch	24Pin (0.5mm pitch) to 15Pin (1mm pitch)
Insertion Thickness	0.35-0.4mm
Contact Orientation	Same side
Total Length	15cm

Document

24PIN-Pai 15PIN FPC Product Brief

24PIN-Pai 15PIN FPC -Production Materials

Buy 24PIN-Pai 15PIN FPC

Below are all DEBIX Approved Distributors or Accessories Partners. Click the logo to copy the link of the purchase website, then you can paste it into the search engine to open it.
