Use of other Sensor module on DEBIX - Part 3

2024.6.24by debix.io

Vibration Sensor Module (Same as IR sensor module)

lWhen the vibration sensor module is stationary, it outputs a high level;

lWhen the vibration sensor module is vibrating, it outputs a low level;


The usage method is the same as the IR sensor module;

Smoke Sensor Module (Same as IR sensor module)

lSmoke sensors are also known as MQ gas sensors;

lWhen the MQ gas sensor detects a high concentration of combustible gas, it outputs a high level;

lWhen the MQ gas sensor does not detect combustible gas, it outputs a low level.

The usage method is the same as the IR sensor module;

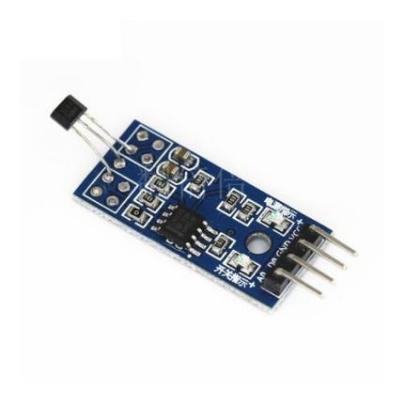

Hall Sensor Module (Same as IR sensor module)

When a strong magnetic field is close to the Hall sensor, it outputs a high level;

When the Hall sensor does not detect a strong magnetic field, it outputs a low level.


The usage method is the same as the IR sensor module;

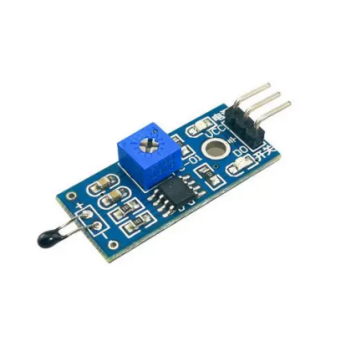

Thermal Sensor Module (Same as IR sensor module)

lWhen the thermal sensor detects that the ambient temperature exceeds the threshold, it outputs a high level;

lWhen the ambient temperature does not exceed the threshold value detected by the thermal sensor, it outputs a low level;


The usage method is the same as the IR sensor module;

Flame Sensor Module (Same as IR sensor module)

lWhen the flame sensor detects a fire source, it outputs a high level;

lWhen the flame sensor does not detect the fire source, it outputs a low level;

The usage method is the same as the IR sensor module;

1 Way - Infrared Trace Sensor Module (Same as IR sensor module)

lWhen the infrared tracking sensor detects the reflected infrared signal, it outputs a low level;

lWhen the infrared tracking sensor does not detect the reflected infrared signal, it outputs a high level;

The usage method is the same as the IR sensor module;

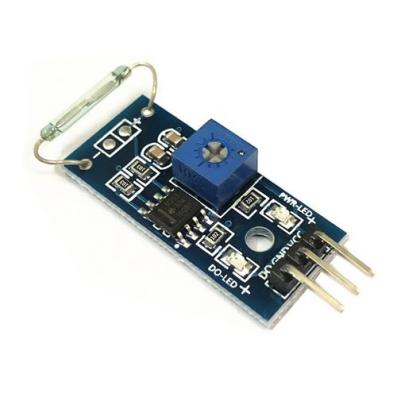

Reed Switch Sensor Module (Same as IR sensor module)

lWhen the reed switch sensor detects a magnetic field approaching, it outputs a high level;

lWhen the reed switch sensor does not detect a magnetic field approaching, it outputs a low level;

The usage method is the same as the IR sensor module
