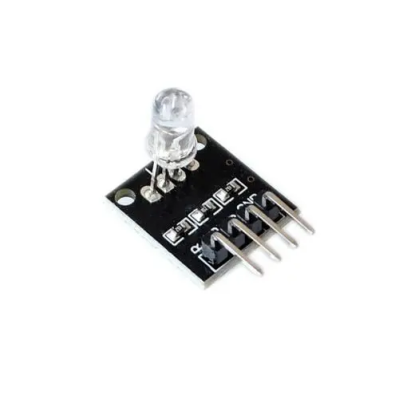

RGB Module
Overview:
l When a high level is input to the R terminal of the RGB module, the RGB module emits red light;
l When a high level is input to the G terminal of the RGB module, the RGB module emits green light;
l When a high level is input to the B terminal of the RGB module, the RGB module emits blue light;
Hardware Connection:
lConnect the R terminal of RGB module to Pin31 of the 40Pin double row pin (J2) of DEBIX.
lConnect the G terminal of the RGB module to Pin32 of the 40Pin double row pin (J2) of DEBIX.
lConnect the B terminal of the RGB module to Pin33 of the 40Pin double row pin (J2) of DEBIX.
lConnect the GND terminal of the RGB module to Pin6 of the 40Pin double row pin (J2) of DEBIX.
Step:
1. Export GPIO and set GPIO properties.
GPIO number on R side = GPIO5_IO04 = ( 5 - 1 ) * 32 + 4 = 132
GPIO number on G side = GPIO1_IO13 = ( 1 - 1 ) * 32 + 13 = 13
GPIO number on B side = GPIO5_IO03 = ( 5 - 1 ) * 32 + 3 = 131
echo 13 > /sys/class/gpio/export
echo 131 > /sys/class/gpio/export
echo 132 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio13/direction
echo out > /sys/class/gpio/gpio131/direction
echo out > /sys/class/gpio/gpio132/direction
echo none > /sys/class/gpio/gpio13/edge
echo none > /sys/class/gpio/gpio131/edge
echo none > /sys/class/gpio/gpio132/edge
2. Set the output level of R, G and B terminals.
echo 1 > /sys/class/gpio/gpio13/value // turn on the red LED
echo 1 > /sys/class/gpio/gpio131/value // turn on the blue LED
echo 1 > /sys/class/gpio/gpio132/value // turn on the green LED
echo 0 > /sys/class/gpio/gpio13/value // turn the red LED off
3. From the three primary colors of light, it can be seen that:
Red + Blue = Purple;
Red + Green = Yellow;
Blue + Green = Yellow;
Red + Blue + Green = White;
For example, to output purple light, simply:
echo 1 > /sys/class/gpio/gpio13/value // turn on red LED
echo 1 > /sys/class/gpio/gpio131/value // turn on blue LED
echo 0 > /sys/class/gpio/gpio132/value // turn off the green LED

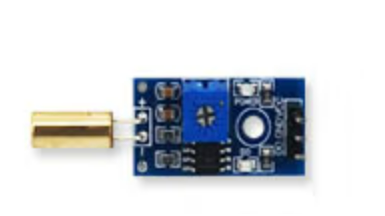

Tilt Sensor Module (Same as IR sensor module)
lWhen the tilt sensor module is perpendicular to the desktop, it outputs a high level;
lWhen the tilt sensor module is parallel to the desktop, it outputs a low level;

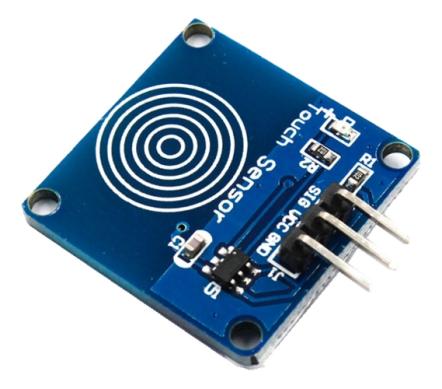

Touch Sensor Module (Same as IR sensor module)
lWhen the finger touches the touch sensor, it outputs a high level .
lWhen the touch sensor is not touched, it outputs a low level;
![](/Uploads/Temp/image/20240624/130.png)
The usage method is the same as the IR sensor module;

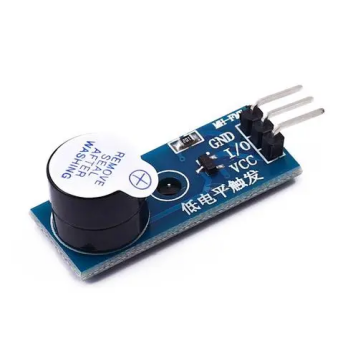

Active Buzzer Module (Same as Relay module)
lWhen the input of the active buzzer module inputs a high level, the buzzer module does not sound;
lWhen the input of the active buzzer module inputs a low level, the buzzer module sounds;
![](/Uploads/Temp/image/20240624/131.png)
The usage method is the same as the relay module;

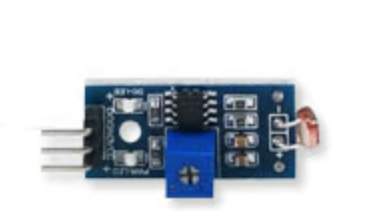

Light Sensor Module (Same as IR sensor module)
lWhen the Light sensor module has light, output high level;
lWhen the Light sensor module has no light, output low level;
![](/Uploads/Temp/image/20240624/132.png)
The usage method is the same as the IR sensor module;
