1. Move the resistor:

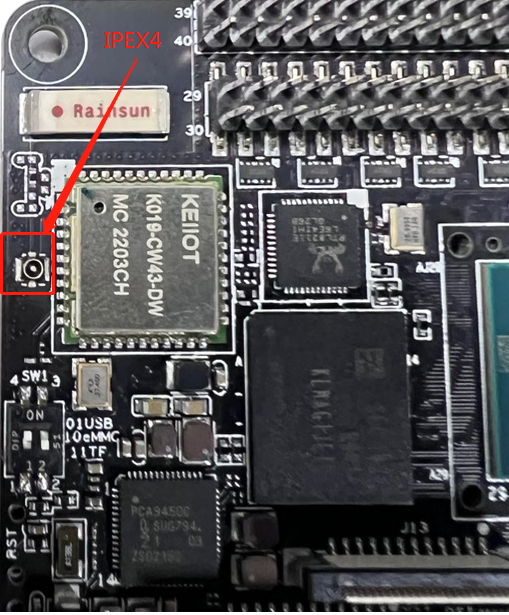

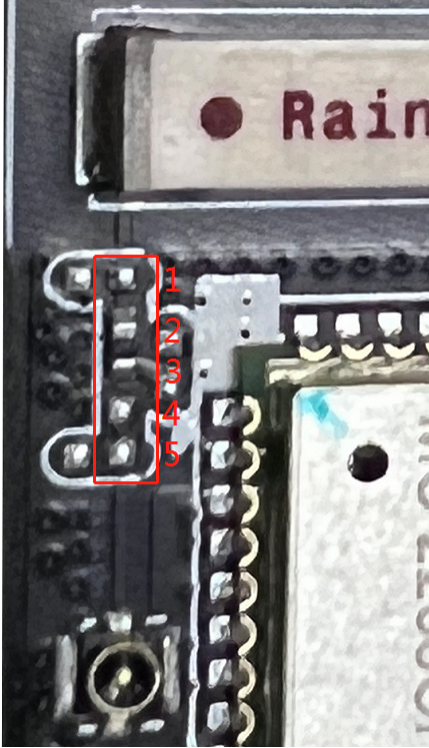

In Figure 1, move the resistor between pads 2 and 3 to between pads 3 and 4 for the purpose of using the IPEX4 antenna pedestal shown in Figure 2
(datasheet for this connector: https://debix.io/Uploads/Temp/file/20221209/IPEX_4%20Antenna%20Connector.PDF).

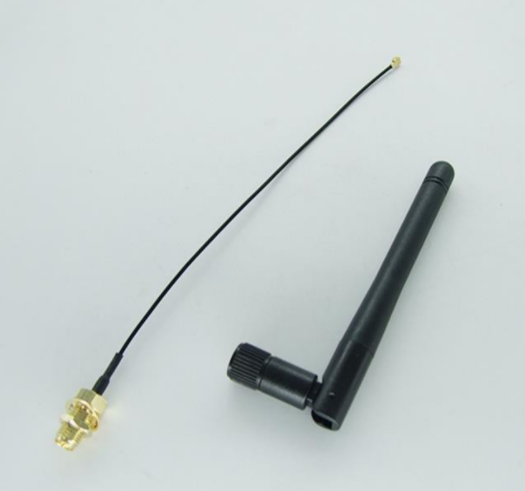

2. Use the IPEX-4 to SMA adapter cable:
Connect the external antenna with the IPEX-4 to SMA adapter cable to complete the replacement, as shown in Figure 3 below.
