Ubuntu Install Samba, Map Disk to Windows

1. Install samba

sudo apt-get install samba-common

dpkg -l | grep samba

vim /etc/samba/smb.conf

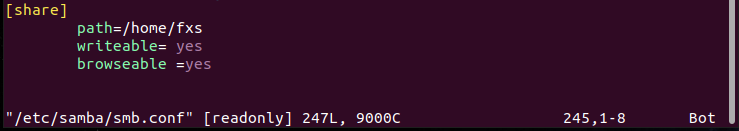

Append to the end of the file:

       path=/home/fxs       // path is the path to the shared directory.

       writeable=yes

       browseable =yes

3. Add the username and password

smbpasswd -a fxs

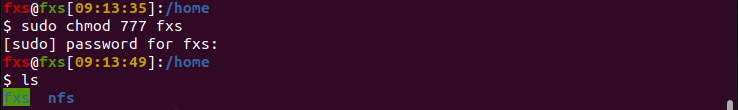

4. Set 777 folder permissions under path

sudo chmod 777 fxs    // fxs is a shared directory

5. Restart samba

service smbd stop

service smbd start

ifconfig

7. Add the disc in windows explorer

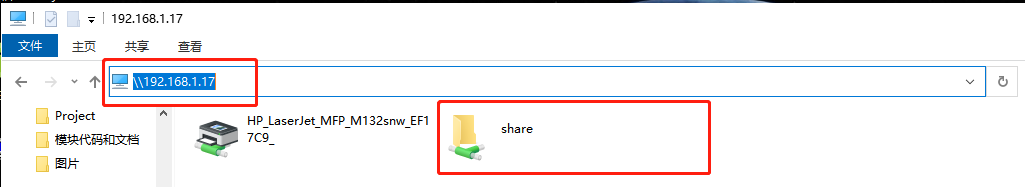

·Type the ip address of Ubuntu and open it, Share means shared folder.

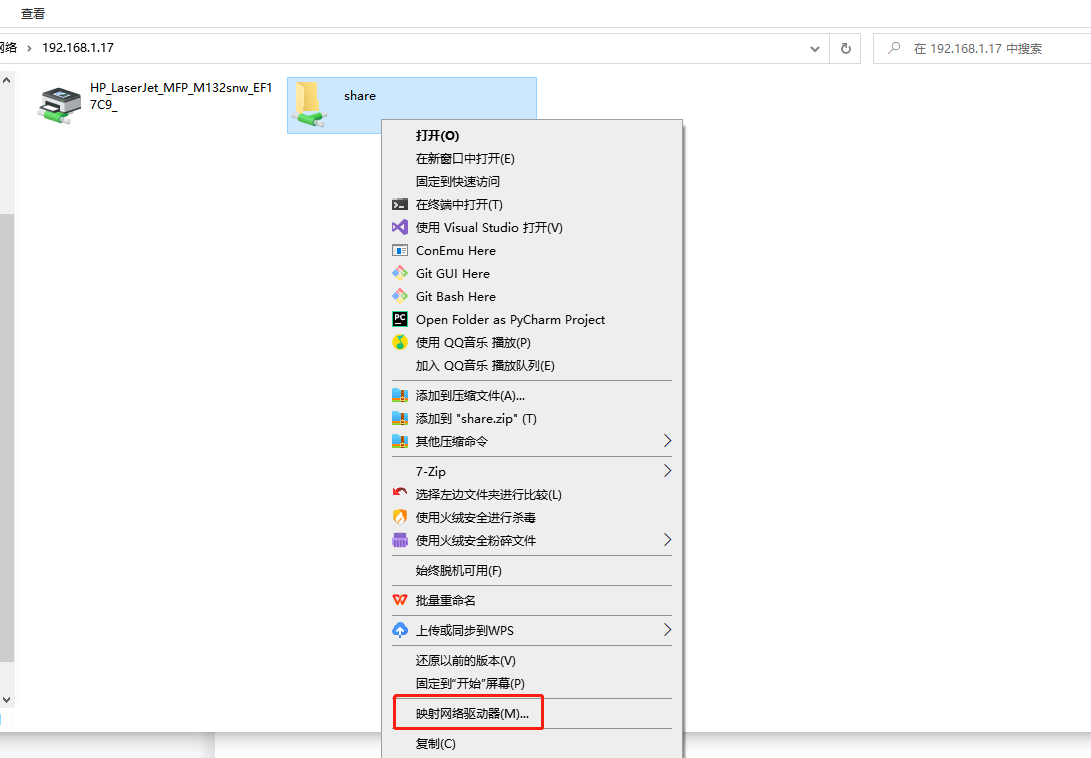

·Right click share and select Map the network drive

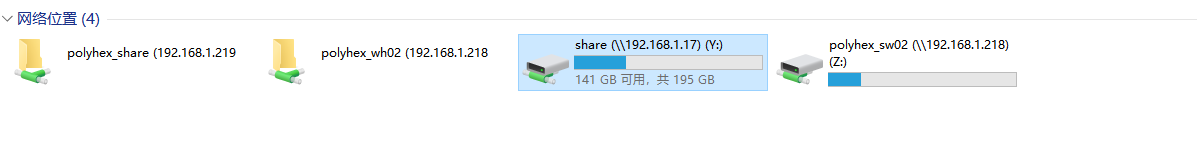

·The mapping is successful as below:
