There are 2 parameters for the description of pins in the device tree:

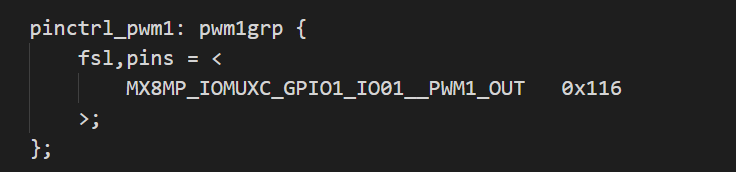

·MX8MP_IOMUXC_GPIO1_IO01__PWM1_OUT describes the pin multiplexing relationship
·0x116 describes the electrical properties of the pin
The DEBIX pin multiplexing relationships can be found in imx8mp-pinfunc.h.
The electrical attribute parameters of the DEBIX pin are set as follows:

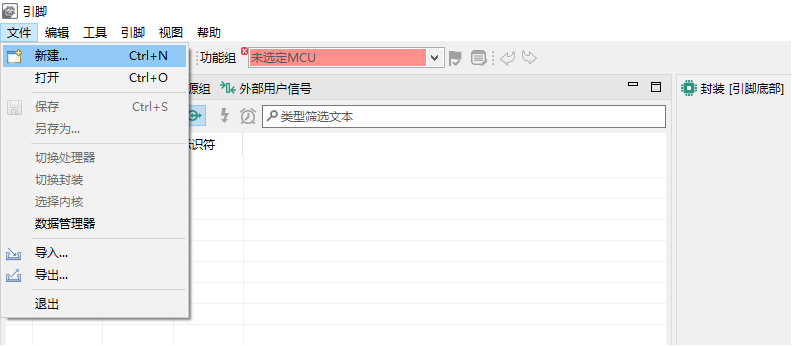

1.Open the official configuration tool Config Tools for i.MX v13, select File -> New

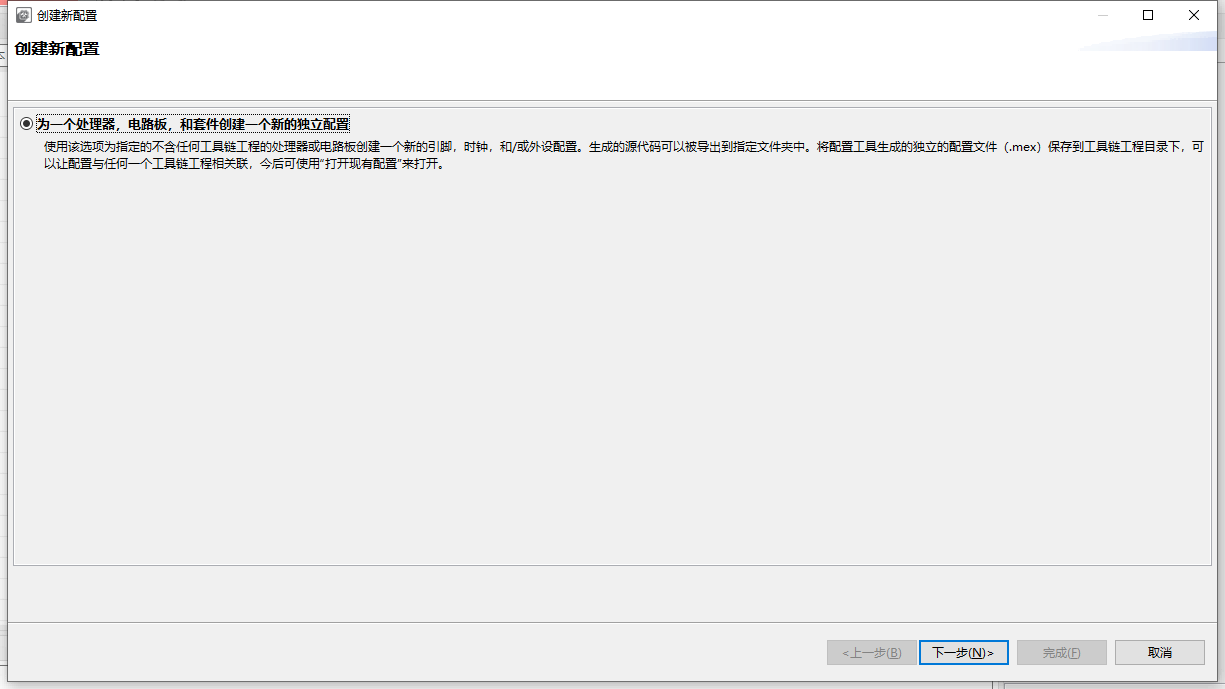

2.Create a new configuration, click Next

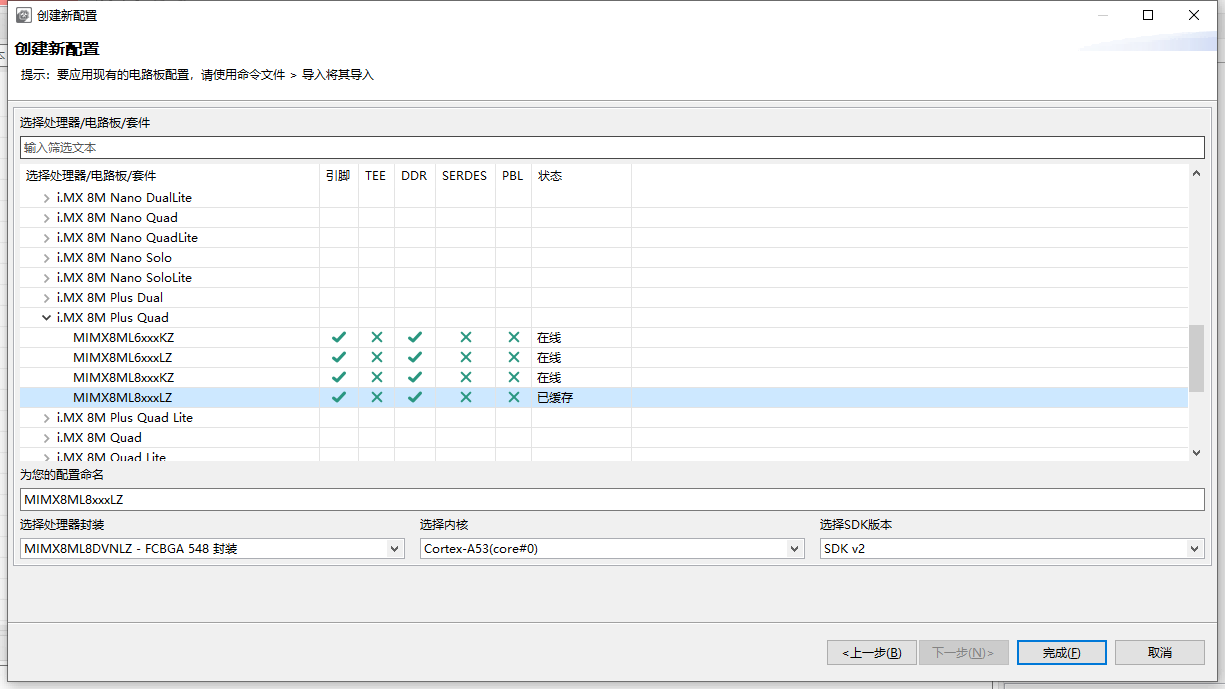

![](/Uploads/Temp/image/20240304/63.png)

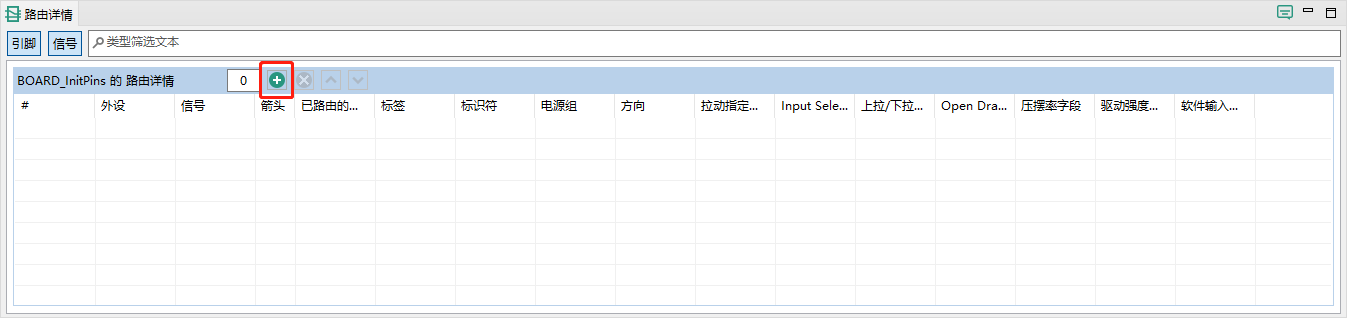

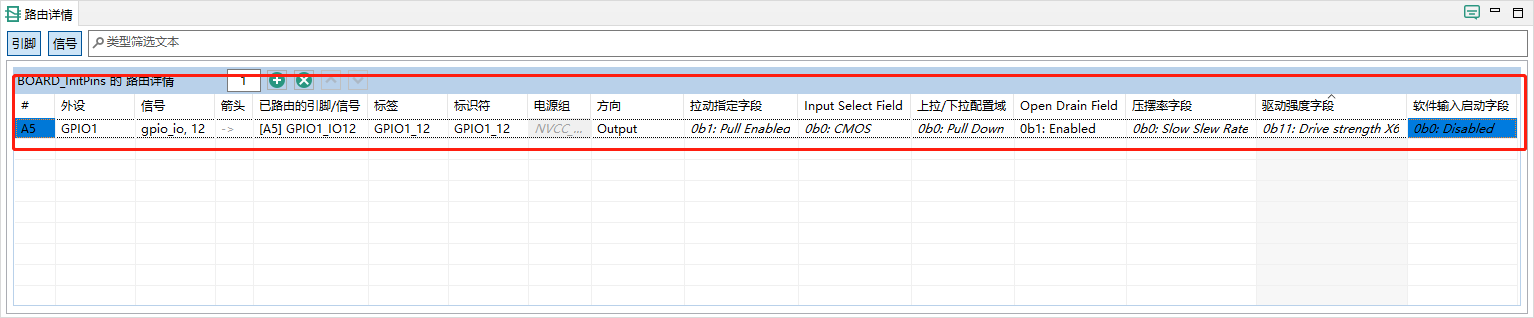

4. To configure the GPIO1_IO12 pin electrical properties as an example:

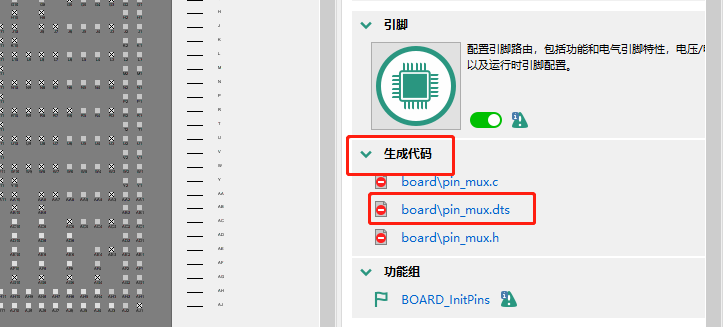

5. Click on the right side to generate code.

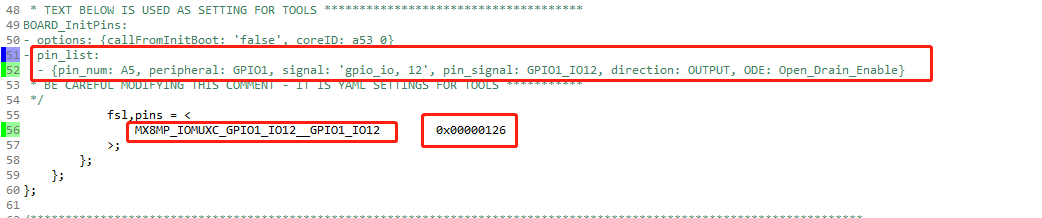

6. Display the pin multiplexing relationship and electrical properties are described as follows:
