DEBIX R3576-01 Single Board Computer

DEBIX R3576-01

The R3576-01 is a commercial-grade single-board computer based on the Rockchip RK3576, which provides comprehensive system software development and rich I/O interfaces for rapid application in intelligent robotics, edge computing, Internet of Things and security.

Product description
Specifications

BUY NOW

Overview

The R3576-01 is a powerful and versatile single-board computer, ideal for demanding applications. It boasts an octa-core processor (quad-core Cortex-A72 + quad-core Cortex-A53) and ample RAM, ensuring smooth performance for complex tasks. With extensive connectivity options including Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, and high-speed USB 3.0, it seamlessly integrates with various peripherals. The R3576-01 is well-suited for applications such as robotics, edge computing, IoT, and security.

Compliance

CE, RCM, C-Tick, FCC, UKCA, RoHs, PSE

Compatibility

DEBIX R3576-01 will be compatible with the existing Fanless Aluminum Enclosure, LoRa Board, SBC POE Module, Camera Modules, and HDMI Display Screens.
Main Features

• Powerful Performance: Quad-core Cortex-A72, quad-core Cortex-A53, 2GB/4GB/8GB LPDDR4 RAM. Enables smooth operation for demanding tasks.
• Robust Design: Built with high-quality components for reliable operation in demanding environments, with a wide operating temperature range (0°C to 70°C).
• Rich Connectivity: Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, USB 3.0, and PCIe support. Enables easy connection and control of peripherals.

Specification

System
Processor	RK3576 , 4 x Cortex-A72 + 4 x Cortex A53 up to 2.2GHz, comes with an integrated neural processing unit (NPU) that delivers up to 6 TOPS (RKNN), and with GPU G52MC3
Memory	2GB LPDDR4 (4GB/8GB optional)
Storage	1) Default: Onboard 32GB eMMC (8GB/16GB/64GB/128GB/256GB optional) 2) Micro SD card 8GB/16GB/32GB/64GB/128GB/256GB optional
OS	Android 14, Debian 12, Ubuntu 20.04 Serve
Boot	Boot from eMMC
Communication
Gigabit Network	2 x Gigabit Ethernet Interfaces: 1 ) 1 x RJ45 with POE power supply (need POE M.2 40-Pin Double-Row Headers power supply module) 2 ) 1 x RJ45
Wi-Fi & BT	2.4GHz & 5GHz Wi-Fi 6, BT 5.4，external Wi-Fi SMA antenna connector
Video & Audio
HDMI	1 x HDMI output with Type-A HDMI female
MIPI CSI	1 x MIPI CSI, support 4-lane, 24Pin 0.5mm Pitch FPC socket
MIPI DSI	1 x MIPI DSI, support 4-lane, 24Pin 0.5mm Pitch FPC socket
Audio	1 x 3.5mm headphone and microphone combo port
DP	1 x DP display support MST with Type-C

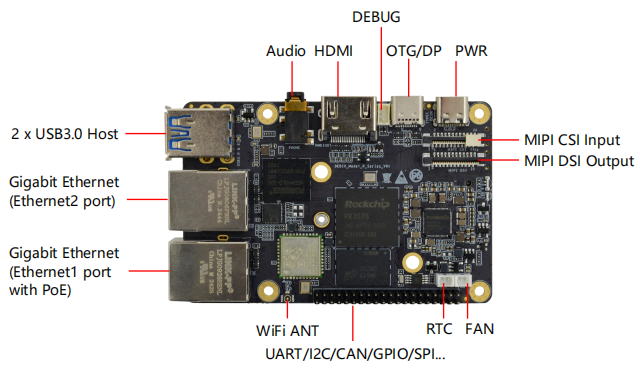

I/O Interfaces
USB	2 x USB 3.0 Host with double layer Type-A 1 x USB 2.0 PWR with Type-C for DC 5V power input 1 x USB 3.0 OTG + DP DISPLAY support MST with Type-C
M.2	1 x PCIe, M.2 M-KEY 2242 (B-Key optional)
40-Pin Double-Row Headers	1) Default: 3 x UART, 2 x SPI, 2 x I2C, 2 x CAN, 6 x GPIO, refer to "GPIO Pin Multiplexing Function List V1.2.xlsx", which can be configured to I2S, PWM, SPDIF, GPIO, etc. via software. 2) 5V power supply, system reset, ON/OFF
Slot	1 x Micro SD slot
RTC	1 x RTC
FAN	1 x FAN
Key	1 x MASKROM key 1 x ON/OFF key 1 x Reset key
Power Supply
Power Input	Default DC 5V/3A power input with Type-C interface
Mechanical

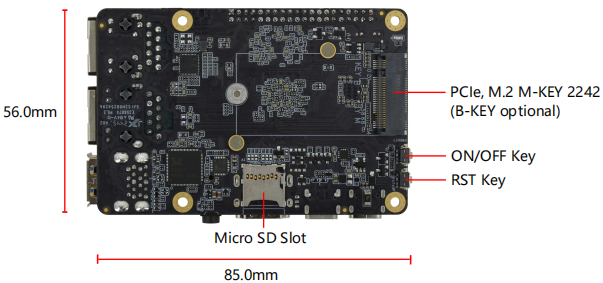

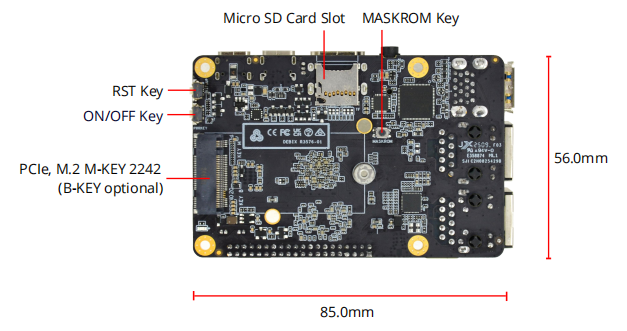

Dimensions	85.0mm x 56.0mm
Net Weight	48g (±0.5g)
Operating Temp.	0°C to 70°C

Documents

DEBIX R3576-01 Product Brief

DEBIX R3576-01 User Guide

GPIO Pin Multiplexing Function List
