DEBIX R3568-01 Single Board Computer

DEBIX R3568-01

R3568-01 is a single board computer based on Rockchip RK3568B2 quad-core Cortex-A55 processor, can be widely used in industrial control, energy and electricity, intelligent medical devices, instruments and apparatus, and security monitoring, etc.

Product description
Specifications

BUY NOW

Overview

The R3568-01 is a powerful and versatile SBC powered by the Rockchip RK3568B2 quad-core Cortex-A55 processor. Ideal for a wide range of applications, including industrial control, smart home, and AIoT, this SBC offers high-performance processing, advanced multimedia capabilities, and extensive connectivity options.
Main Features

• High-Performance CPU: Quad-core Cortex-A55 processor for smooth multitasking and demanding applications.
• AI Acceleration: 1 TOPS NPU for efficient AI inference and edge computing.
• 4K Multimedia: Supports 4K video decoding and 1080p encoding for stunning visuals.
• Rich Connectivity: Extensive I/O options including USB, PCIe, SATA, and Gigabit Ethernet for seamless integration and flexibility.
• Flexible Display: Supports multiple display interfaces, including HDMI 2.0 and MIPI, for diverse display options.

Specification

System
CPU	Rockchip RK3568B2, 4 x Cortex-A55 2.0GHz, comes with an integrated neural processing unit (NPU) that delivers up to 1.0 TOPS.
Memory	1) Default: 2GB LPDDR4X (4GB/8GB optional) 2) 2GB/4GB/8GB LPDDR4 optional
Storage	Onboard 8GB eMMC (16GB/32GB/64GB/128GB/256GB optional) Expansion: Micro SD card (8GB/16GB/32GB/64GB/128GB/256GB optional)
OS	Android 13, Yocto-L6.6.23_2.0.0 , Debian 12
Boot	Boot from eMMC
Communication
Ethernet	2 x 10/100/1000Mbps RJ45 Ethernet ports
Wi-Fi & BT	2.4GHz & 5GHz Wi-Fi, bluetooth 5.0, external Wi-Fi SMA antenna connector
Video & Audio
HDMI	1 x HDMI output, Type-A
LVDS	(1) 1 x LVDS, 2 x 15Pin header (2) 1 x LVDS backlight control, 6Pin header (3) 1 x LVDS power, 2 x 3Pin header
MIPI DSI/LVDS	1 x MIPI DSI/LVDS, 30Pin/1.25mm FPC jack
EDP	(1) 1 x EDP, 2 x 10Pin header (2) 1 x EDP backlight control, 6Pin header
Audio	(1) 1 x 3.5mm headphone and mic combo (2) 1 x 4Pin SPK

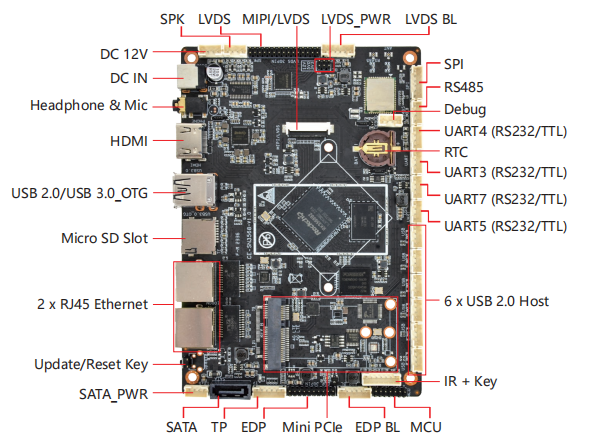

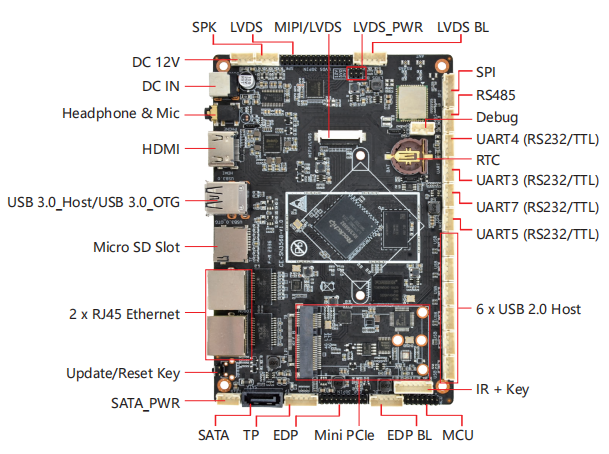

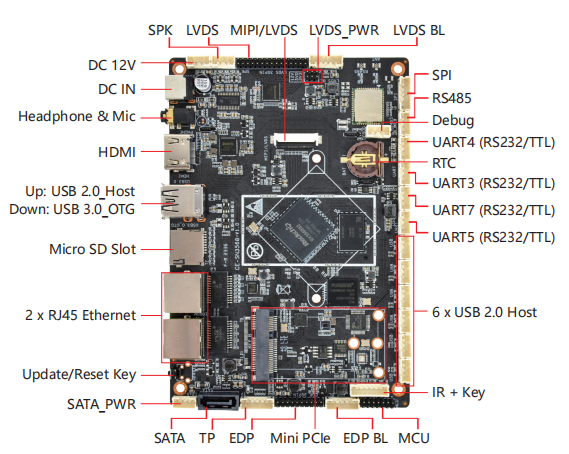

Other I/O Interfaces
USB	(1) 6 x USB 2.0 Host, 4Pin connector (2) 1 x USB 3.0 OTG & USB 2.0, double-layer Type-A
Debug	1 x Debug, 4Pin connector
UART	4 x UART (RS232/TTL), 4Pin connector
RS485	1 x RS485, 4Pin connector
SPI	1 x SPI, 6Pin connector
TP	1 x TP, 6Pin connector
SATA	(1) 1 x SATA (2) 1 x SATA power 5V/12V, 4Pin connector
Mini PCIe/M.2	1) 1 x Mini PCIe 4G 2) 1 x PCIe, M.2 B-KEY optional (Notice: You can only choose the MiniPCIe slot or the M.2 slot)

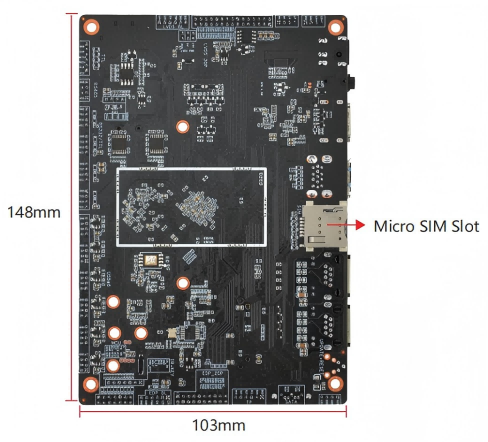

Card Slots	(1) 1 x Micro SD slot (2) 1 x Micro SIM slot
MCU	1 x MCU, 2 x 7Pin header
RTC	1 x RTC
Infrared Ray	1 x IR+Key, 7Pin connector
DC Power	(1) 1 x DC power socket for 5.5mm x 2.1mm plug (2) 1 x Internal power, 4Pin/2.54mm connector
Power Supply
Power Supply	DC 12V/3A power input for default
