DEBIX R3566-01 Single Board Computer

DEBIX R3566-01

The R3566-01 is a cost-effective, commercial-grade SBC based on the Rockchip RK3566. Designed for low power consumption and affordability, it offers rich I/O for applications like AIoT devices, smart home products, and e-ink displays.

Product description
Specifications

BUY NOW

Overview

The R3566-01 is a versatile and cost-effective SBC based on the Rockchip RK3566 (quad-core Cortex-A55 @ 1.8GHz). Featuring a dedicated NPU for AI acceleration (1.0 TOPS), it excels in applications requiring both general-purpose processing and intelligent capabilities. With flexible display support (LVDS, eDP, HDMI) and rich audio features, the R3566-01 is suitable for a wide range of applications, from smart home devices to industrial control systems.
Main Features

• Powerful Processing: Rockchip RK3566 quad-core processor (Cortex-A55 @ 1.8GHz) with a 1.0 TOPS NPU for accelerated AI workloads.
• Flexible Display Connectivity: Supports a wide range of display interfaces, including LVDS, eDP, and HDMI output.
• Rich Audio Features: Includes dedicated speaker outputs, headphone jack, microphone input, PDM MIC, and AEC loopback for high-quality audio processing.

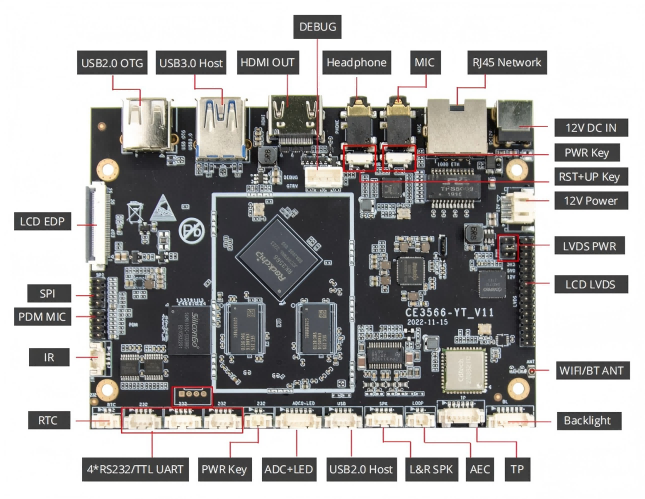

Specification

System
CPU	Rockchip RK3566, 4 x Cortex-A55 1.8GHz, comes with an integrated neural processing unit (NPU) that delivers up to 1.0 TOPS.
Memory	1) Default: 2GB LPDDR4 (4GB/8GB optional) 2) 2GB/4GB/8GB LPDDR4X optional
Storage	16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)
OS	Android, Yocto, Debian
Communication
Ethernet	1 x Gigabit Ethernet
Wi-Fi & BT	2.4GHz & 5GHz Wi-Fi, BT 5.0 (optional)
Video & Audio
LVDS	1 x LVDS, supports single and dual 8bit 1 x LVDS backlight, supports backlight control adjustment 1 x LVDS Power
TP	1 x TP, supports I2C or USB protocol
eDP	1 x eDP
HDMI	1 x HDMI output
SPK	1 x L&R speaker, 4Ω/2W
Headphone	1 x Headphone
MIC	1 x MIC
PDM	1 x PDM MIC
AEC	1 x AEC loopback

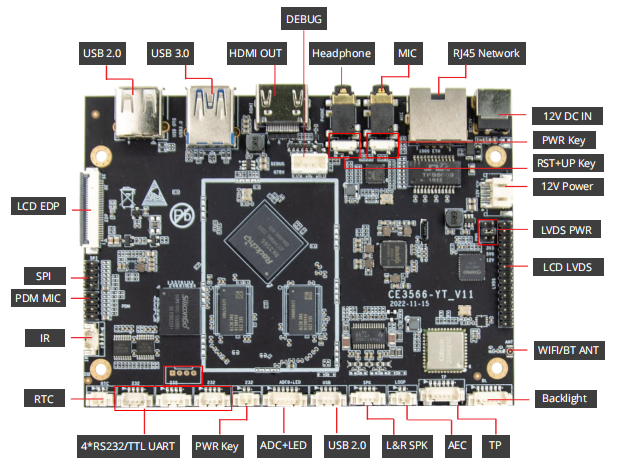

Other I/O Interfaces
UART	2 x TTL UART
RS232	2 x RS232
USB 2.0	1 x USB 2.0 OTG 1 x USB 2.0
USB 3.0	1 x USB 3.0
SPI	1 x SPI
IR	1 x IR receiver interface
ADC & LED	1 x ADC signal acquisition and LED control interface
Debug	1 x Debug
Power	1 x DC IN
RTC	1 x RTC battery interface
RTC	1 x RTC
Power Key	1 x Power key
Power Supply
Power Input	DC 12V-24V/2A input
Mechanical

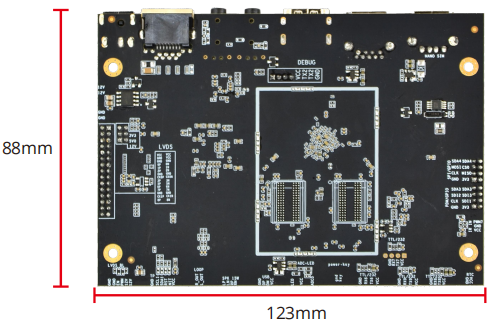

Dimensions	123.00mm x 88.00mm x 1.20mm
Net Weight	69g (±0.5g)
Operating Temp.	0℃~70℃
