DEBIX Model S Industrial Single Board Computer

DEBIX Model S

DEBIX Model S is the first DEBIX single board computer to feature the NXP i.MX 6ULL, a low-power processor rating up to 792MHz with only 0.53 watt of power at full load consumption.

  • Overview

    The DEBIX Model S is a low-power single board computer ideal for smart edge computing applications. Powered by the NXP i.MX 6ULL processor, it delivers up to 792MHz performance while consuming only 0.53 watts at full load. This makes it a cost-effective and energy-saving solution for various edge devices.



    Compatibility
    DEBIX Model S is compatible with your existing DEBIX SBC PoE module and DEBIX 5" LCD monitors.

  • Main Features
    • Low-power processor with NXP i.MX 6ULL, consuming only 0.53 watts at full load (Extended Industrial grade, Industrial grade and Commercial grade processor optional).

    • Feature an advanced implementation of a single Arm® Cortex®-A7 core, which operates at speeds up to 792 MHz.

    • High security with support for secure encryption, tamper-proof monitoring, secure boot, and more.

    • Rich and extensible interfaces: 2 x USB 2.0 Host, 1 x 24bit RGB, 1 x 8bit DVP CSI, 40Pin dual-row headers etc. to enhance scalability.

    • Compatible with DEBIX PoE module and DEBIX 5" LCD monitors.
Specification

System
CPU NXP i.MX 6ULL/MCIMX6Y2CVM08AB, 1 x Arm® Cortex®-A7 @792MHz

i.MX 6ULL series CPU optional, commercial grade up to 900MHz

Memory 512MB DDR3/DDR3L (128MB/256MB optional)
Storage On board 8GB eMMC (16GB/32GB/64GB/128GB/256GB optional)
Operating System Yocto, OpenWRT

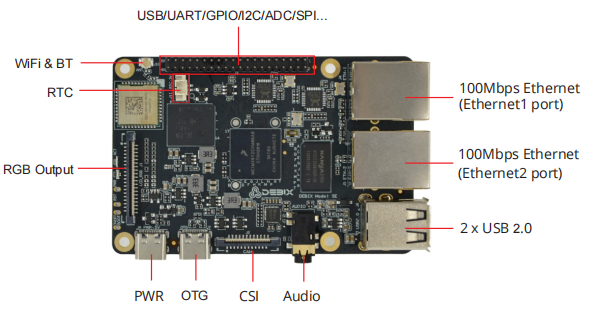

I/O Interfaces
Ethernet 2 x 10/100Mbps Ethernet port,

(1) 1 x Ethernet port, support POE power supply (need POE power device module)

(2) 1 x Ethernet port (POE power supply not supported)

WIFI & BT

2.4GHz WIFI, BT5.1, external WIFI&BT SMA antenna (IPEX-1) connector

USB

2 x USB 2.0 Host

1 x USB OTG

Audio 1 x 3.5mm Headphone and Mic combo port
Expansion

40-Pin Double-Row Headers

(1) 2 x USB 2.0 Host, 1 x UART Debug

(2) Default 12 x GPIO, up to 3 x UART, 6 x ADC, 1 x SPI, 2 x I2C, 1 x CAN, 3 x PWM through software configuration.

(3) 5V power input/output, 1.8V/3.3V@300mA power output, system reset, ON/OFF

RGB Display

1 x 24bit RGB Display Output

CSI

1 x 8bit DVP Parallel CSI

LED & KEY

1 x ACT LED (Green)

1 x Power LED (Red and Blue)

1 x ON/OFF (eMMC firmware USB upgrade button)

1 x Reset

Power Supply
Power Supply

DC 5V/2A Type-C

Mechanical & Environmental

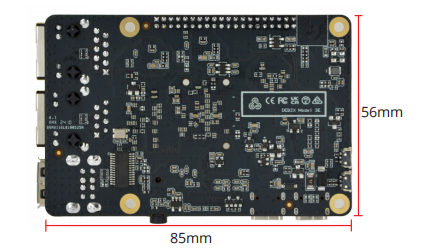

Size 85.0mm x 56.0mm (±0.5mm)
Operating Temp.

-20℃ to 70℃ (-40℃ to 85℃ optional)

Net Weight 43g (±0.5g)


Documents

DEBIX Model S Product Brief

DEBIX Model S Reduced GPIO Function List

DEBIX Model S 3D.stp

DEBIX Model S User Manual
