DEBIX MIPI DSI Adapter Board

EMB-AS-12

  • Overview

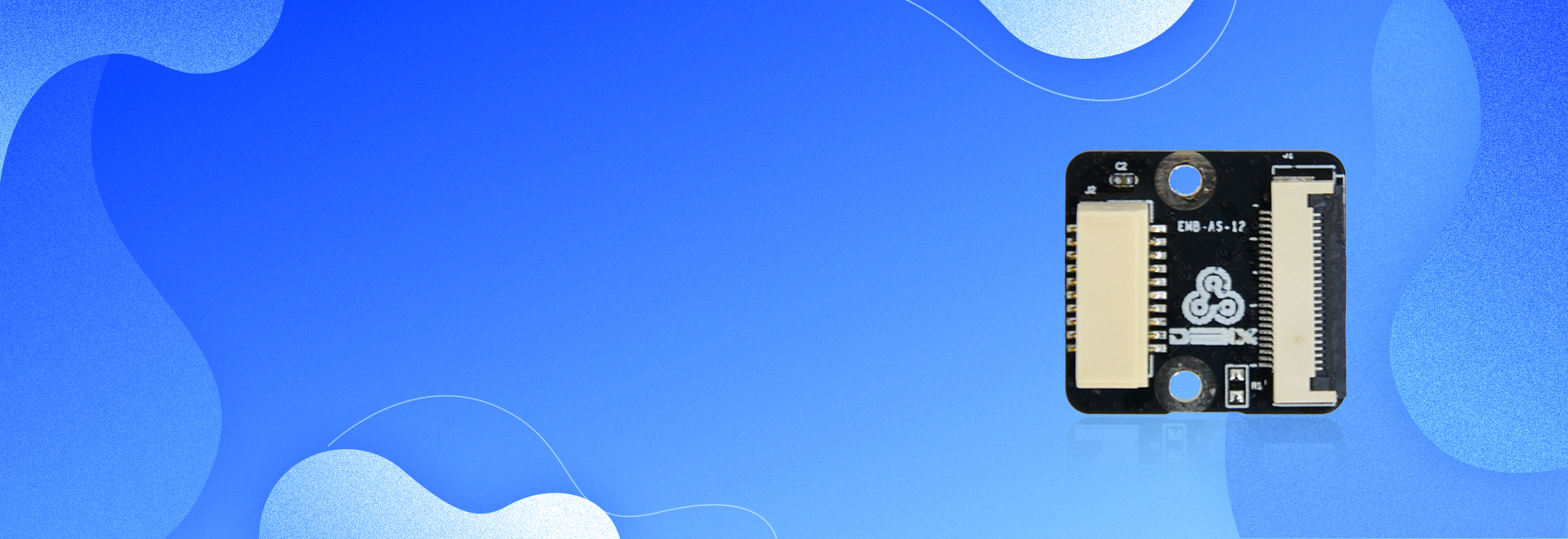

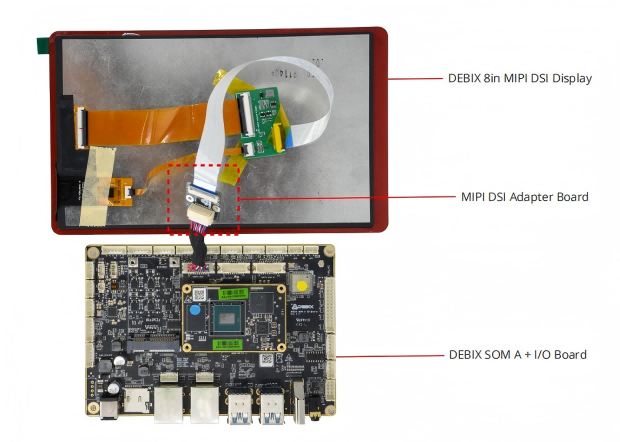

    MIPI DSI Adapter Board is an add-on board designed for DEBIX SOM A I/O Board to allow the connection with the DEBIX MIPI DSI display. It has a FPC connector for the flexible flat cable of the MIPI DSI display and a 2 x 10Pin connector for the DSI connection cable.

  • Main Features
    • Includes the double-row DSI connection cable
    • Designed for DEBIX SOM A I/O Board
    • Compatible with DEBIX 8-inch MIPI DSI display
Specification

Interfaces

Double-row

Connector

1 x double-row connector for the DSI cable of the DEBIX SOM A I/O Board

FPC connector

1 x FPC connector for the FPC cable of the DEBIX 8-inch MIPI DSI display

Mechanical

Dimension

21.0mm(L) x 20.0mm(W) (±0.5mm)



Documents

DEBIX MIPI DSI Adapter Board Product Brief

DEBIX MIPI DSI Adapter Board User Guide

DEBIX MIPI DSI Adapter Board Schematics



Buy DEBIX MIPI DSI Adapter Board
Below are all DEBIX Approved Distributors or Accessories Partners. Click the logo to copy the link of the purchase website, then you can paste it into the search engine to open it.
