DEBIX SOM D i.MX 8ULP Core Board
DEBIX SOM D
DEBIX i.MX 8ULP Industrial-grade System-on-module
-
Overview
DEBIX SOM D is a power-efficient System-on-Module product based on the NXP i.MX 8ULP process, featuring a dual-core ARM Cortex-A35 CPU (up to 800MHz) and an integrated Cortex-M33 real-time core. Designed for ultra-low-power embedded applications, it combines processing, memory, and storage in a compact form factor, streamlining carrier board development and accelerating deployment in wearables, edge computing, smart healthcare, and other power-sensitive scenarios.
.png)
-
Main Features• Ultra-low Power Consumption: Advanced power management and energy-efficient architecture make it ideal for always-on and battery-operated applications.
• Scalable and Flexible Design: Compact module with versatile interface support, enabling easy integration into a wide range of embedded applications.
• Real-time Performance: Integrated ARM Cortex-M33 core enables real-time processing, secure operations, and efficient task offloading from the main application processor.
Specification
|
System |
|
|
CPU |
NXP i.MX 8ULP, 2 x Arm® Cortex®-A35 @800MHz, 1 x Arm® Cortex®-M33 @216MHz. The maximum power consumption is 0.738W. (i.MX 8ULP series CPU optional) |
|
Memory |
2GB LPDDR4 (1GB optional) |
|
Storage |
Onboard 16GB eMMC (8GB/32GB/64GB/128GB/256GB optional) |
|
OS |
Yocto-L6.12.3_1.0.0, Debian 12, Android 15 (also supports FreeRTOS) |
|
Internal I/O |
|
|
Ethernet |
Up to 1 x Ethernet controller (10/100Mbps) |
|
Display |
1 x MIPI DSI (4-lane) Up-to 24-bit RGB (DBI/DPI) |
|
Camera |
1 x MIPI CSI (2-lane), supports up to 2MP |
|
Audio |
1 x SAI (synchronous audio interface), 1 x SPDIF OUT/IN, 1 x PDM |
|
USB |
2 x USB 2.0 |
|
LPUART |
Up to 8 x LPUART |
|
LPI2C |
Up to 7 x LPI2C |
|
SDIO |
Up to 2 x SDIO |
|
CAN/CAN-FD |
Up to 1 x CAN/CAN-FD |
|
LPSPI |
Up to 5 x LPSPI |
|
ADC |
Up to 2 x ADC (12bit) |
|
DAC |
Up to 2 x DAC (12bit) |
|
Analog Comparator |
Up to 2 x Analog Comparators |
|
Power Supply |
|
|
Power Input |
DC 3.5V~5V/1A |
|
Operating Temperature |
|
|
Temp. Range |
-40°C~85°C for default, -20°C~70°C optional |
|
Mechanical |
|
|
Connector |

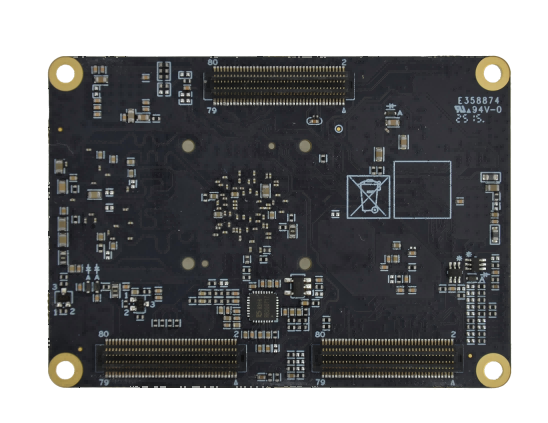

3 x 2*40pin/0.5mm pitch board-to-board connector, matching sockets of various heights |
|

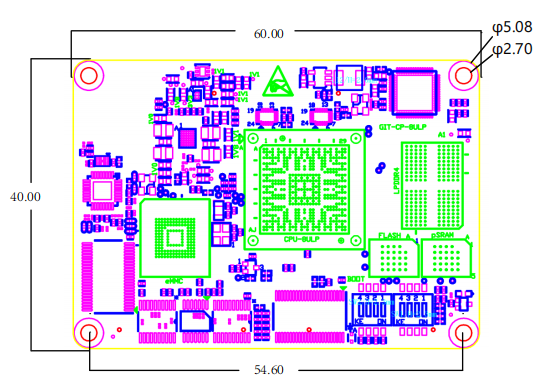

Dimension |
60mm(L) x 40mm(W) x 9.0mm(H) (±0.5mm) |
|
Net Weight |
17g (±0.5g) |
|
Gross Weight |
29g (±0.5g) |
