DEBIX SOM B i.MX 93 Core Board
DEBIX SOM B
DEBIX i.MX 93 Industrial-grade System-on-module
-
Overview
DEBIX SOM B is the second System-on-Module product of the DEBIX series. It is based on NXP i.MX 93 CPU with a 0.5 TOPS microNPU, which brings us powerful system performance. This core board design has some notable benefits, such as design reutilization, reduction of development time of the carrier boards, and flexible integration into various embedded systems.
Compliance
CE, FCC, UKCA, RoHs, RCM, PSE
-
Main Features• Industrial-grade performance: Designed for demanding applications in Industry 4.0, IoT, smart home, building control and multimedia.
• Comprehensive software support: Includes Yocto, Ubuntu, Debian, OpenWRT and FreeRTOS operating systems.
• Real-time control: General-purpose Cortex-M33 up to 250MHz for real-time and lowpower processing.
Specification
|
System |
|
|
CPU |
NXP i.MX 9352, 2 x Arm® Cortex®-A55 @1.7GHz, 1 x Arm® Cortex®-M33 @250MHz, 1 x Arm® Ethos™-U65 microNPU @0.5 TOPS.(i.MX 93 series CPU optional) |
|
Memory |
2GB LPDDR4 (1GB optional) |
|
Storage |
Onboard 16GB eMMC (8GB/32GB/64GB/128GB/256GB optional) |
|
OS |
Ubuntu22.04, Yocto-L6.12.3_1.0.0, Debian 12 (also supports OpenWRT and FreeRTOS) |
|
I/O Interfaces |
|
|
Gigabit Ethernet |
Up to 2 x Gigabit Ethernet controller, one of which supports Time Sensitive Networking (TSN) |
|
Display |
1 x LVDS (4-lane), supports up to 1366x768@60Hz or 1280x800@60Hz 1 x MIPI DSI (4-lane), supports up to 1080@60Hz or 1920x1200@60Hz 1 x 24-bit parallel RGB, supports up to 1366x768@60Hz or 1280x800@60Hz |
|
Camera |
1 x MIPI CSI, supports up to 2 RX data lanes (plus 1 Rx clock lane). Compliant with MIPI CSI-2 v1.3 and MIPI D-PHY v1.2 specifications. |
|
Audio |
Up to 3 x SAI (synchronous audio interface), 1 x SPDIF OUT/IN, 1 x PDM |
|
USB |
2 x USB 2.0 |
|
UART |
Up to 8 x UART |
|
I2C |
Up to 6 x I2C |
|
SDIO |
Up to 2 x SDIO3.0 |
|
CAN |
Up to 2 x CAN |
|
SPI |
Up to 8 x SPI |
|
ADC |
Up to 4 x 12-bit ADC (4-channel) |
|
JTAG |
1 x JTAG |
|
Power Supply |
|
|
Power Input |
DC 3.5V~5V/1A |
|
Operating Temperature |
|
|
Temp. Range |
-40°C~85°C for default, -20°C~70°C optional |
|
Mechanical & Environmental |
|
|
Connector |

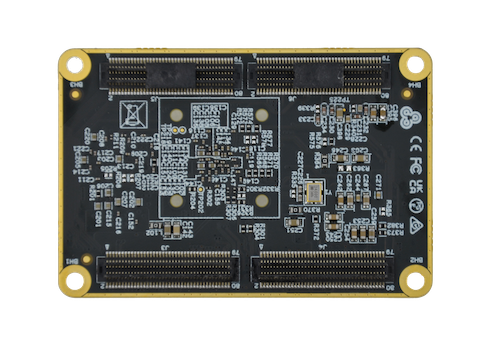

4 x 2*40pin/0.5mm pitch board-to-board connector (PN: BB51024A-R80-10-32), matching sockets of various heights |
|

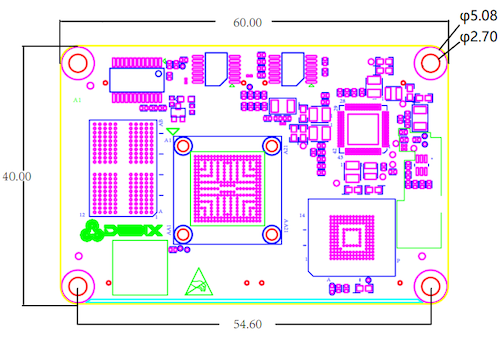

Dimension |
60mm(L) x 40mm(W) x 5.6mm(H) (±0.5mm) |
|
Net Weight |
11g (±0.5g) |
|
Gross Weight |
23g (±0.5g) |
