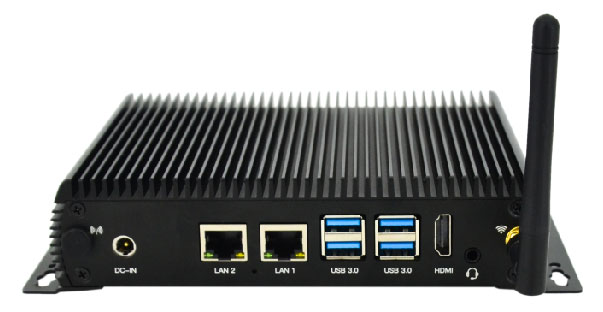

BPC-iMX8MP-05 Industrial Computer

BPC-iMX8MP-05

  • Overview
    BPC-iMX8MP-05 Industrial Computer is composed of DEBIX SOM A (core board), DEBIX SOM A I/O Board (carrier board) and the steel & aluminum enclosure. It features fanless design and rich isolated interfaces including 2 x DI, 1 x DO, 2 x CAN, 2 x RS485 and 1 x RS232. It's a compact box pc that has strong connections supported by dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0 and 1 Mini PCIe for 4G module/LoRa module/network card.
  • Main Features
    • Solid steel and aluminum enclosure
    • Utilizes DEBIX SOM A core board and DEBIX SOM A I/O Board carrier board
    • Support boot from eMMC, Micro SD and SPI Nor Flash(reserved)
    • Support Ubuntu, Yocto, Windows IoT and Debian operating systems
    • Strong connections including dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0 and one Mini PCIe for 4G module/LoRa module/network card
    • 4 x USB 3.0, 2 x USB 2.0 and rich isolated interfaces
Specification

System

Motherboard

DEBIX SOM A (Core Board) + DEBIX SOM A I/O Board (Carrier Board)

Memory

Onboard 2GB LPDDR4 (1GB/4GB/8GB optional)

Storage

Onboard 16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)

OS

Win10 IoT Enterprise, Ubuntu 22.04, Yocto-L6.1.22_2.2.0, Debian 12

Boot

(1) Support boot from eMMC on DEBIX SOM A (default)

(2) Support boot from Micro SD on carrier board

(3) Support boot from SPI Nor Flash on carrier board (reserved)

Communication

Gigabit Ethernet

2 x Independent MAC Gigabit Ethernet ports with POE power supply (need POE

power device module) (one supports TSN)

Wi-Fi & Bluetooth

2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0, external Wi-Fi&BT SMA antenna connector

Video & Audio

Display

1 x HDMI output

Audio

1 x Headphone and mic combo port

1 x 4Pin L&R speaker

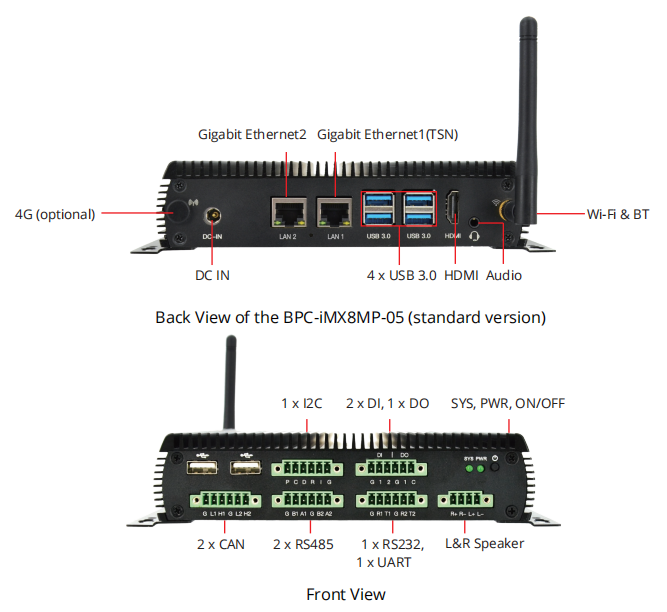

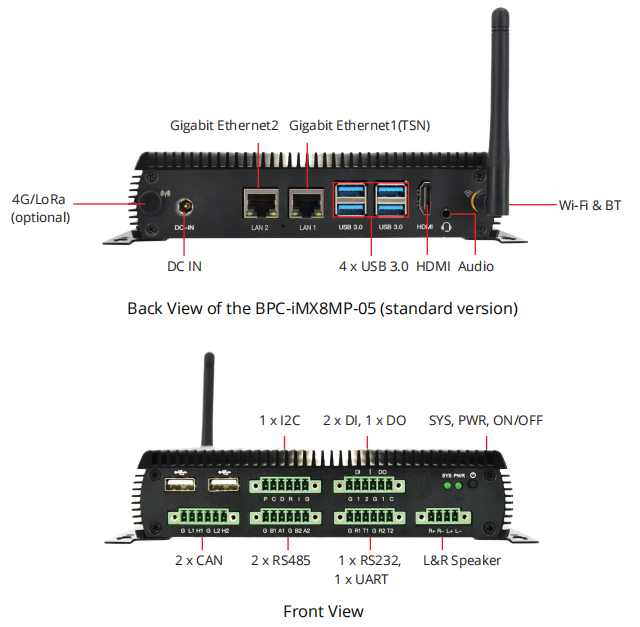

External I/O

Antenna

2 x external SMA antenna connectors for Wi-Fi&BT (default) and 4G (optional)

DC IN

1 x Power socket, support 5.5mm x 2.1mm plug

USB 3.0

4 x USB 3.0 Host

USB 2.0

2 x USB 2.0 Host

Serial Ports

(1) 1 x I2C
(2) 2 x Isolated CAN
(3) 2 x Isolated RS485

(4) 1 x Isolated RS232
(5) 1 x UART TTL 3.3V

GPIO

(1) 2 x Isolated DI, support dry contact and wet contact

(2) 1 x Isolated DO, support wet contact, compatible with dry contact of external relay

LED & KEY

(1) 1 x System LED

(2) 1 x Power LED
(3) 1 x ON/OFF

Internal I/O

SIM Slot

1 x Built-in Micro SIM slot, push pop-up slot

SD Slot

1 x Built-in Micro SD slot, push pop-up slot

Mini PCIe

(1) Support 4G module such as Quectel 4G module, built-in SIM card, etc.
(2) Support LoRa module
(3) Support other expansion such as network card, SATA and serial port

Power Supply

Power Input

Support DC 12V-36V

Mechanical & Environmental

Enclosure Material

Steel and aluminum alloy

Dimension

192.70(W)mm x 41.60(H)mm x 124.00(D)mm (±0.5mm)

Gross Weight

830g (±0.5g)

Operating Temp.

-20°C to +70°C


Product Variant:

BPC-iMX8MP-05 (standard version) variant, see the table below for details.

Variant Name

Differences from Base Product

BPC-iMX8MP-05A

1. SIM slot was revised to external I/O

2. Support 3 external SMA antenna connectors for GPS, 4G and 4G-DIV





Documents


BPC-iMX8MP-05 Product Brief

BPC-iMX8MP-05 Industrial Computer User Guide
