BPC-iMX8MP-03 Industrial Computer
BPC-iMX8MP-03
-
OverviewBPC-iMX8MP-03 Industrial Computer is composed of DEBIX SOM A (core board), DEBIX SOM A I/O Board (carrier board) and the steel & aluminum enclosure. Engineered for industrial applications, it has wide operating temperature range of -20℃ to 70℃, and guarantees more than 50000 hours of MTBF. Besides, all serial ports and GPIO are designed with isolation to improve safety. It's a compact box pc that has strong connections. It comes with dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0 and 1 Mini PCIe for 4G module/LoRa module/network card, and provides 6 USB, 1 HDMI and 1 audio port.
-
Main Features• Solid steel and aluminum enclosure, >50000 hours of MTBF
• Utilizes DEBIX SOM A core board and DEBIX SOM A I/O Board carrier board
• Support boot from eMMC, Micro SD and SPI Nor Flash(reserved)
• Support Windows, Ubuntu, Yocto and Android operating systems
• Strong connections including dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0 and one Mini PCIe for 4G module/LoRa module/network card

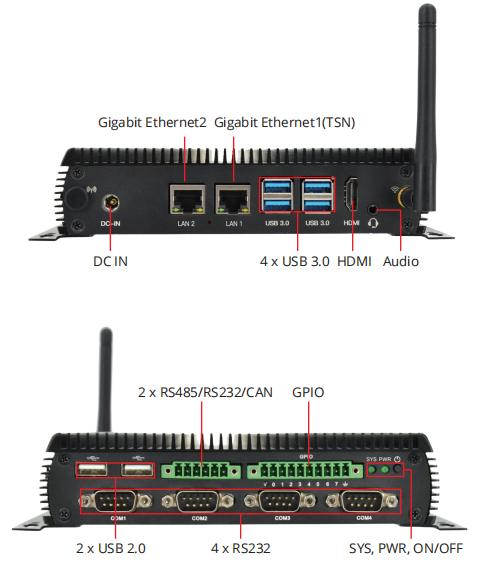

• 4 x USB 3.0, 2 x USB 2.0 and isolated interfaces: 4 x RS232, 2 x RS485/ RS232/ CAN, 4 x DI, 4 x DO
Specification
| System | |
| Motherboard |
DEBIX SOM A (Core Board) + DEBIX SOM A I/O Board (Carrier Board) |
| Memory | Onboard 2GB LPDDR4 (1GB/4GB/8GB optional) |
| Storage |
16GB eMMC (8GB/32GB/64GB/128GB/256GB optional) |
| OS | Windows 10 IoT Enterprise, Ubuntu 20.04, Yocto-L5.10.72_2.2.0, Android 11 |
| Boot |
(1) Support boot from eMMC on DEBIX SOM A
(2) Support boot from Micro SD on carrier board (3) Support boot from SPI Nor Flash on carrier board (reserved) |
| Communication | |
| Gigabit Network |
2 x Independent MAC Gigabit RJ45 port, both support POE power supply (need POE power device module) |
| WIFI & BT | 2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0, external SMA antenna for Wi-Fi (4G or LoRa antenna is optional) |
| Video & Audio | |
| Display | 1 x HDMI output, Type-A female socket |
| Audio | 1 x Headphone and mic combo port, 3.5mm socket |
| Expansion | |
| DC IN |
1 x Power socket for 5.5mm x 2.1mm plug |
| USB 3.0 |
4 x USB 3.0 Host, double-layer Type-A interface |
| USB 2.0 |
2 x USB 2.0 Host Type-A interface |
| Serial Ports |
(1) 4 x Isolated RS232, compatible with UART TTL 3.3V without isolation (2) 2 x Isolated RS232/RS485/CAN (RS485 for default)，compatible with UART TTL 3.3V without isolation |
| GPIO |
(1) 4 x Isolated DI, support dry contact and wet contact (2) 4 x Isolated DO, support wet contact, compatible with dry contact of external relay |
| LED & KEY |
(1) 1 x System LED (2) 1 x Power LED (3) 1 x ON/OFF |
| Internal I/O | |
| SIM Slot | 1 x Built-in Micro SIM slot, push pop-up slot |
| SD Slot |
1 x Built-in Micro SD slot, push pop-up slot |
| Mini PCIe |
(1) Support 4G module such as Quectel 4G module, built-in SIM card, etc. (2) Support LoRa module (3) Support other expansion such as network card, SATA and serial port |
|
Power Supply |
|
| Power Input |
DC 12V/2A power input for default, supports DC 12V~36V |
| Mechanical & Environmental | |
| Enclosure Material | Steel and aluminum alloy |

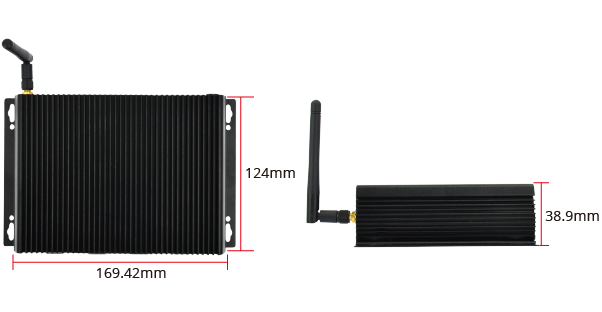

| Dimension |
169.42(W)mm x 38.9(H)mm x 124(D)mm |
| Gross Weight |
812g |
| Operating Temp. |
-20℃~+70℃ (industrial grade) |
| Relative Humidity | 10%~90% |
| MTBF | >50000 hours |
| Shock |
15G half-sine 11ms duration |
| Vibration | 1Grms random 5-500Hz hr/axis |
Documents
BPC-iMX8MP-03 Industrial Computer Product Brief
BPC-iMX8mp-03 Industrial Computer User Guide
