BPC-RK3399-01 Box PC
BPC-RK3399-01
-

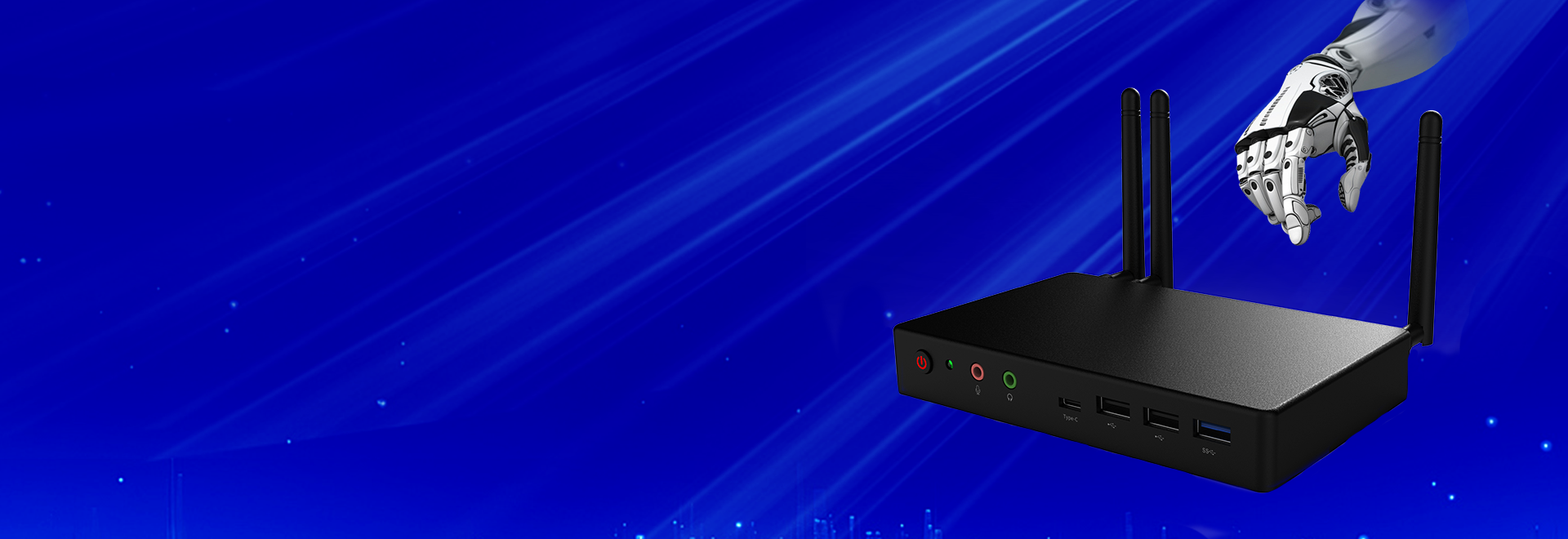

OverviewThe BPC-RK3399-01 is a versatile and powerful industrial-grade box PC powered by the Rockchip RK3399 processor. With its rich I/O interfaces and support for various operating systems, this box PC is ideal for embedded systems, IoT applications, and digital signage.
.png)
-
.png)
Main Features• Rockchip RK3399 2 x Cortex-A72 + 4 x Cortex-A53 processor
• Onboard 2GB/4GB LPDDR4, 16GB~512GB eMMC
• Android 8.1, Ubuntu 20.04 operating system

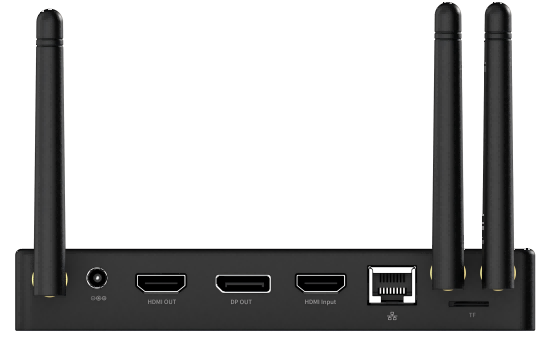

• 1 x HDMI OUT, 1 x HDMI IN, 1 x DP OUT, 1 x Headphone, 1 x Mic IN
• 1 x LAN, WIFI 2.4G/5G (WIFI6), BT, 1 x Mini PCIe, 1 x Micro SIM card slot
• 2 x USB 2.0, 1 x USB 3.0, 1 x Type-C, support RTC and Watchdog
Specification
|
System |
|
|
CPU |
NXP i.MX 6ULL(default) Support NXP i.MX 6UltraLite |
|
Memory |
512MB DDR3 (default) |
|
Storage |
8GB eMMC (default) |
|
Operating System |
Buildroot 2019.02.4, Yocto 2.5.2 |
|
Communication |
|
|
Network |
2 x 10M/100Mbps LAN |
|
4G |
1 x 4G (optional) |
|
WIFI |
1 x WIFI (default) |
|
Bluetooth |
1 x BLE BT5.0 (default) |
|
I/O Interfaces |
|
|
USB |
1 x USB2.0 Host(default), USB OTG available via software configuration |
|
SIM |
1 x Micro SIM |
|
RS485 |
2 x Physically-isolated RS485 |
|
RS232 |
2 x Physically-isolated RS232 |
|
CAN |
2 x Physically-isolated CAN |
|
LED |
1 x Power LED, 2 x GPIO LED (functions can be customized) |
|
Reset |
1 x Reset |
|
SMA RF |
1 x WIFI antenna, 1 x 4G/LoRa/UWB antenna (optional) |
|
LoRa |
1 x LoRa (optional) |
|
UWB |
1 x UWB (optional) |
|
Power Supply |
|
|
DC-IN |
1 x DC socket, 1 x 2Pin 3.81mm Phoenix, support 12V~24V wide voltage input |
|
Mechanical & Environmental |
|
|
Dimension |
107mm x 107mm x 35mm |
|
Material |
Aluminum alloy |
|
Operating Temp. |
0℃~70℃ |
