BPC-R3576-01 Box PC
BPC-R3576-01
-
Overview
BPC-RK3576-01 is a fanless mini box PC utilizing DEBIX R3576-01 SBC for default, and it supports adding a PoE module for the DEBIX SBC inside. It's an easy to use computer with a pre-installed image on the eMMC. Connect the display, power it on and press the ON/OFF button, then you can see the startup screen.
Compatibility
BPC-RK3576-01 will be compatible with the existing PoE module, and DEBIX 5"/7''/10.1" HDMI monitors.
-

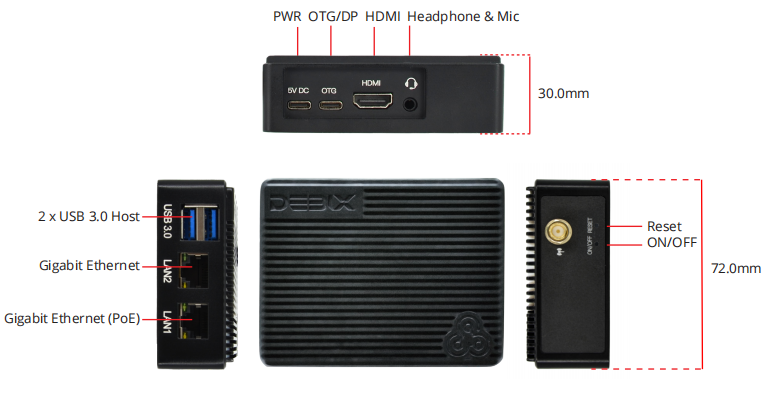

Main Features• Compact size, durable aluminum alloy case
• Fanless design with increased surface area for enhanced heat dissipation
• Two gigabit network ports and three USB 3.0 ports to bring an efficient data transmission speed
• 1 x HDMI port, 1 x 3.5mm headphone and mic combo port

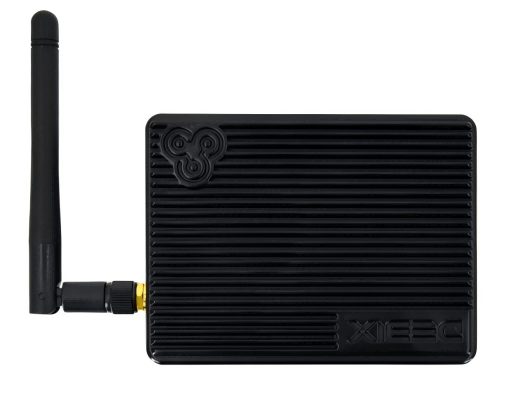

• Support Wi-Fi antenna by removing the plastic baffle at the right side
Specification
|
System |
|
|
Motherboard |
DEBIX R3576-01 |
|
Memory |
2GB LPDDR4 (4GB/8GB optional) |
|
Storage |
1) Default: Onboard 32GB eMMC (8GB/16GB/64GB/128GB/256GB optional) 2) Micro SD card 8GB/16GB/32GB/64GB/128GB/256GB optional |
|
OS |
Android 14, Debian 12, Ubuntu 20.04 Server |
|
Boot Mode |
Boot from eMMC |
|
I/O Interfaces |
|
|
Gigabit Network |
2 x Gigabit Ethernet Interfaces: 1) 1 x RJ45 with PoE power supply (needs PoE power supply module) 2 ) 1 x RJ45 |
|
Wi-Fi & BT |
2.4GHz & 5GHz Wi-Fi 6, BT 5.4, external Wi-Fi SMA antenna connector |
|
HDMI |
1 x HDMI output with Type-A HDMI female |
|
Audio |
1 x 3.5mm headphone and microphone combo port |
|
DP |
1 x DP display supports MST with Type-C |
|
USB |
2 x USB 3.0 Host with double layer Type-A 1 x USB 2.0 PWR with Type-C for DC 5V power input 1 x USB 3.0 OTG + DP DISPLAY supports MST with Type-C |
|
Mechanical & Environmental |
|
|
Material |
Aluminum alloy |
|
Dimension |
93mm x 72mm x 30mm (±0.5mm) |
|
Net Weight |
197g (±0.5g) |
|
Gross Weight |
218g (±0.5g) |
|
Operating Temp. |
0°C ~ 70°C |
|
Power Supply |
|
|
Power Adapter |
Default DC 5V/3A power input with Type-C interface |
Documents
