15.6" Modular Industrial Panel

15.6 iMX8MP Modular Panel

  • Overview

    The i.MX 8M Plus of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities. The modular panel  provides flexible solutions based on quad core i.MX 8M Plus, targeted at both commercial and industrial applications.

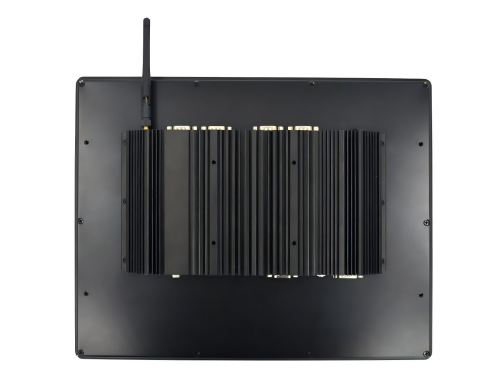

    It consists of a front display screen and a back-end fanless computer, which allows customers to select the back-end module with an appropriate processor, and flexibly match it to a 10.1"/ 11.6"/ 15.6" touch screen. In this way, it helps to reduce time and cost in the future maintenance, upgrade and production process.

  • Main Features
    • Three touch screen sizes for options, including 10.1", 11.6" and 15.6"

    • 2 x Gigabit Ethernet ports, 2.4GHz & 5GHz Wi-Fi (4G optional)

    • 4 x RS232, 2 x RS485/RS232, 4 x USB 3.0 Host, 2 x USB 2.0 Host

    • 1 x HDMI, 1 x 3.5mm headphone
Specification

System

CPU

NXP i.MX 8M Plus (default), 4 x ARM Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional)

Memory

2GB LPDDR4 (4GB/8GB optional)

Storage

16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)

Operating System

Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 22.04, Windows 10 IoT Enterprise

Note: 4GB/8GB LPDDR4 supports Windows 10 IoT, recommend 8GB version.

Video & Audio

Touch Screen

15.6 " 1024 x 768 10-point capacitive touch screen (10.1"/ 11.6" screen optional)

Display Interface

1 x HDMI

Audio Interface

1 x 3.5mm headphone

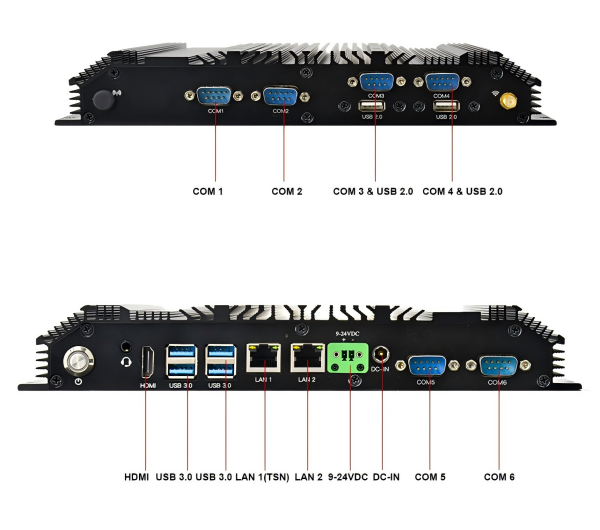

Front I/O

Power Switch

1 x Power switch

Power Input

1 x DC IN, supports 5.5mm x 2.1mm plug; 1 x 2Pin 3.81mm Phoenix

Network

2 x 10/100/1000Mbps RJ45 network port, 2.4GHz & 5GHz Wi-Fi

4G (optional)

USB

4 x USB 3.0 Host Type-A

COM

2 x RS485/RS232 (RS485 for default)

Rear I/O

COM

4 x RS232

USB

2 x USB 2.0 Host Type-A

Antenna Connectors

1 x WIFI antenna connector, 1 x 4G antenna connector (optional)

Mechanical & Environmental

Enclosure

Black color, made of aluminum alloy

Dimension

261mm x 136mm x 39mm (Back-end computer module, not include the screen)

Weight

3.94kg

Cooling

Fanless design, with radiator for heat dissipation

Mounting

VESA

Operating Temp.

Commercial: 0℃~+70℃

Extended Commercial: -20℃~+70℃

Industrial: -40℃~+85℃




Document

15.6 iMX8MP Modular Panel Product Brief
