11.6" Modular Industrial Panel
11.6 iMX8MP Modular Panel
-
Overview
The i.MX 8M Plus of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities. The modular panel provides flexible solutions based on quad core i.MX 8M Plus, targeted at both commercial and industrial applications.

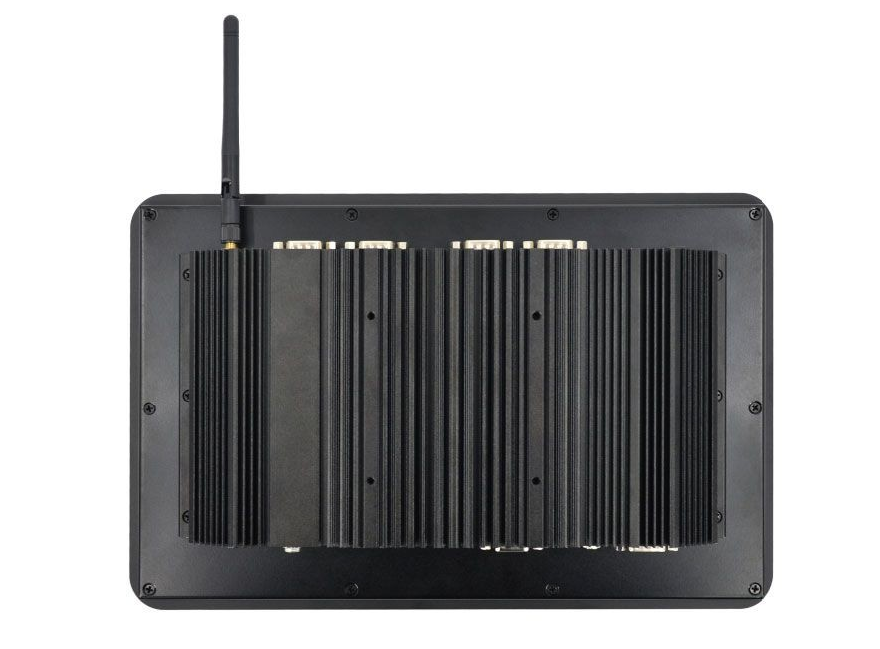

It consists of a front display screen and a back-end fanless computer, which allows customers to select the back-end module with an appropriate processor, and flexibly match it to a 10.1"/ 11.6"/ 15.6" touch screen. In this way, it helps to reduce time and cost in the future maintenance, upgrade and production process.
-
.png)
Main Features• Three touch screen sizes for options, including 10.1", 11.6" and 15.6"
• 2 x Gigabit Ethernet ports, 2.4GHz & 5GHz Wi-Fi (4G optional)
• 4 x RS232, 2 x RS485/RS232, 4 x USB 3.0 Host, 2 x USB 2.0 Host
• 1 x HDMI, 1 x 3.5mm headphone
Specification
System
CPU
NXP i.MX 8M Plus (default), 4 x ARM Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional)
Memory
2GB LPDDR4 (4GB/8GB optional)
Storage
16GB eMMC (8GB/32GB/64GB/128GB/256GB optional)
Operating System
Android 11, Yocto-L5.10.72_2.2.0, Ubuntu 22.04, Windows 10 IoT Enterprise
Note: 4GB/8GB LPDDR4 supports Windows 10 IoT, recommend 8GB version.
Video & Audio
Touch Screen
11.6 " 1366 x 768 10-point capacitive touch screen (10.1"/ 15.6" screen optional)
Display Interface
1 x HDMI
Audio Interface
1 x 3.5mm headphone
Front I/O
Power Switch
1 x Power switch
Power Input
1 x DC IN, supports 5.5mm x 2.1mm plug; 1 x 2Pin 3.81mm Phoenix
Network
2 x 10/100/1000Mbps RJ45 network port, 2.4GHz & 5GHz Wi-Fi
4G (optional)
USB
4 x USB 3.0 Host Type-A
COM
2 x RS485/RS232 (RS485 for default)
Rear I/O
COM
4 x RS232
USB
2 x USB 2.0 Host Type-A
Antenna Connectors
1 x WIFI antenna connector, 1 x 4G antenna connector (optional)
Mechanical & Environmental
Enclosure
Black color, made of aluminum alloy
Dimension
261mm x 136mm x 39mm (Back-end computer module, not include the screen)
Weight
3.1kg
Cooling
Fanless design, with radiator for heat dissipation
Mounting
VESA
Operating Temp.
Commercial: 0℃~+70℃
Extended Commercial: -20℃~+70℃
Industrial: -40℃~+85℃
