BPC-iMX93-01 Industrial Computer

BPC-iMX93-01

  • Overview

    BPC-iMX93-01 is a fanless mini box pc utilizing DEBIX Model C SBC for default. It's an easy to use computer with an external Wi-Fi&BT antenna, a 5V DC power adapter and a Micro SD card pre-installed with the image (eMMC optional). Insert the Micro SD card, press the ON/OFF button, then you power it on.


  • Main Features
    · Compact size, durable aluminum alloy case
    · Fanless design with increased surface area for enhanced heat dissipation
    · Dual Gigabit Ethernet network and two USB 2.0 to bring an efficient data transmission speed
    · 1 x 3.5mm headphone and mic combo
    · 1 x Wi-Fi&BT antenna
    · With NXP i.MX 93 processor 1.7GHz and a full load power consumption of 1W
    · For IoT edge, contactless HMI, smart home, building control and industrial applications
    · Supports system switching between Ubuntu, Yocto and Debian Server
Specification

System

Motherboard

DEBIX Model C

Memory

1GB LPDDR4 (2GB optional)

Storage

8GB/16GB/32GB/64GB/128GB/256GB Micro SD card (eMMC optional)

OS

Ubuntu Server, Yocto

I/O Interfaces

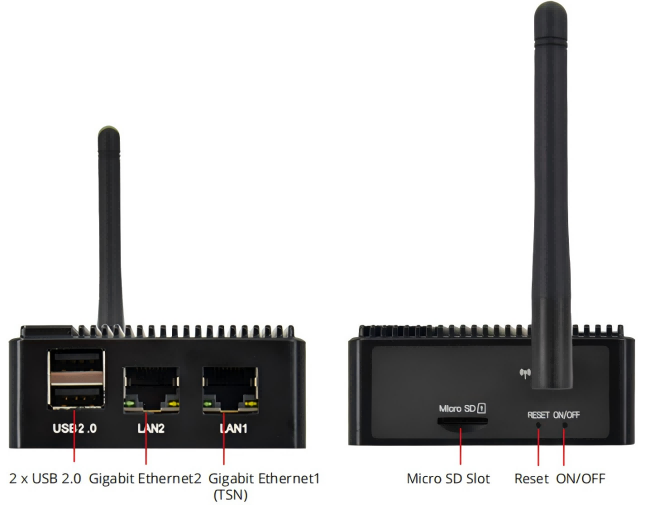

Gigabit Ethernet

2 x Gigabit Ethernet ports, one supports TSN

WIFI & BT

2.4GHz & 5GHz Wi-Fi and Bluetooth 5.2, external SMA antenna for Wi-Fi&BT

USB

1 x Type-C USB for DC 5V power input

1 x Type-C USB as a USB OTG

2 x USB 2.0 Host Type-A

Audio

1 x 3.5mm Headphone and Mic combo port

Slot

1 x Micro SD Slot

KEY

1 x Reset KEY

1 x ON/OFF KEY

Power Supply

Power Adapter

DC 5V/2A

Mechanical & Environmental

Material

Aluminum alloy

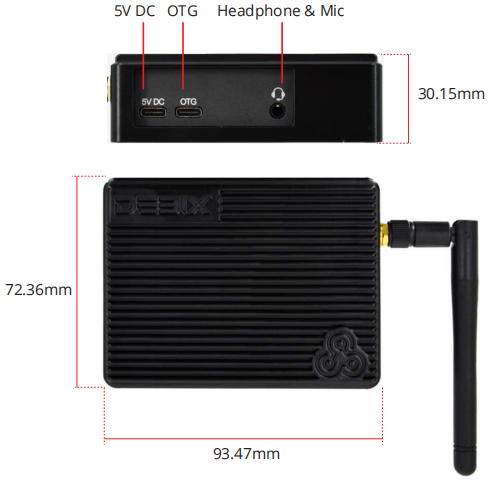

Dimension

93.47mm x 72.36mm x 30.15mm (±0.5mm)

Weight

192g (±0.5g)

Operating Temp.

-20°C to 70°C, -40°C to 85°C (optional)



Documents

BPC-iMX93-01 Product Brief
