BPC-iMX8MP-01 Industrial Computer

BPC-iMX8MP-01

  • Overview

    BPC-iMX8MP-01 is a fanless mini box pc utilizing DEBIX Model A or DEBIX Model B SBC for default, and it supports adding an 4G add-on board or a PoE module for the DEBIX SBC inside. With a 5V DC power adapter and a Micro SD card pre-installed with the image (eMMC optional), it's an easy to use computer. Insert the Micro SD card, connect the display, power it on and press the ON/OFF button, then you can see the startup screen.


    Compatibility

    BPC-iMX8MP-01 will be compatible with the existing DEBIX 4G Board, SBC POE Module, and HDMI Display Screens.

  • Main Features
    • Compact size, durable aluminum alloy case
    • Fanless design with increased surface area for enhanced heat dissipation
    • Gigabit network and four USB 3.0 to bring an efficient data transmission speed
    • 1 x HDMI at 3840 x 2160p30, 1 x 3.5mm headphone and mic combo

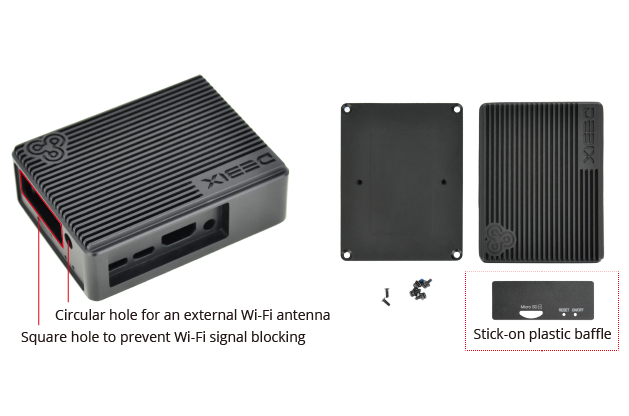

    • Support Wi-Fi antenna by removing the plastic baffle at the right side
Specification

System

Motherboard

DEBIX Model A or DEBIX Model B

Memory

2GB LPDDR4 (4GB/8GB optional)

Storage

8GB/16GB/32GB/64GB/128GB/256GB Micro SD card (eMMC optional)

OS

Ubuntu 22.04, Yocto-L6.6.36, Windows 10 IoT Enterprise, Android 11, Debian 12

I/O Interfaces

Network

1 x Gigabit Ethernet port, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0

USB Type-C

1 x Type-C USB for DC 5V power input
1 x Type-C USB as a USB OTG

USB 3.0

4 x USB 3.0 Host

HDMI

1 x Type-A HDMI output, 3840 x 2160p30

Audio

1 x 3.5mm Headphone and Mic combo port

KEY

1 x RESET KEY
1 x ON/OFF KEY

Mechanical & Environmental

Material

Aluminum alloy

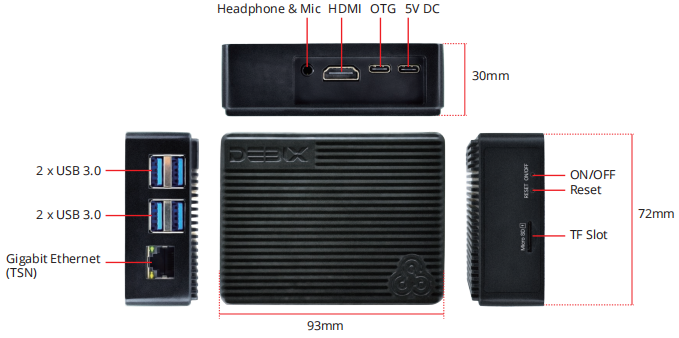

Dimension

93mm x 72mm x 30mm (±0.5mm)

Net Weight

190g (±0.5g)

Gross Weight

211g (±0.5g)

Operating Temp.

-20°C to 70°C (DEBIX Model A), -40°C to 85°C (DEBIX Model B)

Power Supply

Power Adapter

DC 5V/3A



Documents

BPC-iMX8MP-01 Product Brief

BPC-iMX8MP-01 User Guide
