DEBIX Model A 4G Board

EMB-AS-05

Connect your DEBIX Model A/B to a 4G network.

  • Overview

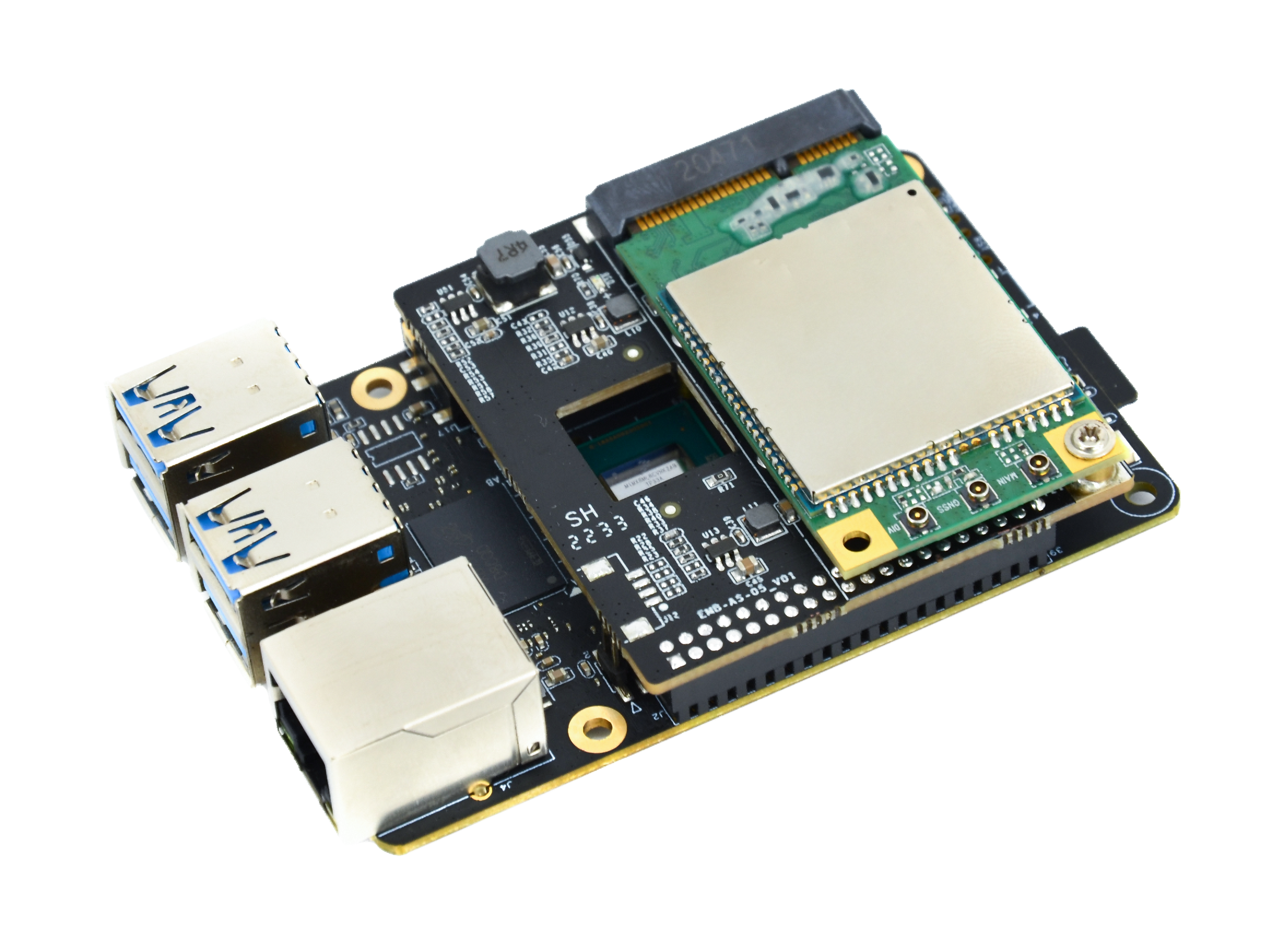

    DEBIX Model A 4G Board is an add-on board for DEBIX Model A and DEBIX Model B SBC. The main board already supports 2 x Gigabit Network, Wi-Fi and Bluetooth with the exception of 4G network, therefore, the 4G Board is designed to provide additional utility to our SBC. In a small size of 57mm x 51.3mm, it has one Mini PCIe slot for 4G module and one Micro SIM slot. It's also worth mentioning that the DEBIX 4G Board can be used in conjunction with a DEBIX Model A/B inside a DEBIX Aluminum Enclosure.


    Compatibility

    DEBIX Model A, DEBIX Model B


    Compliance

    CE, RoHS, UKCA, FCC, PSE, C-Tick, RCM Declaration

  • Main Features
    • Add the 4G function and a 4G antenna to your DEBIX Model A/B

    • Comes with Mini PCIe interface for 4G module and Micro SIM slot

    • Compatible with the existing DEBIX Aluminum Enclosure

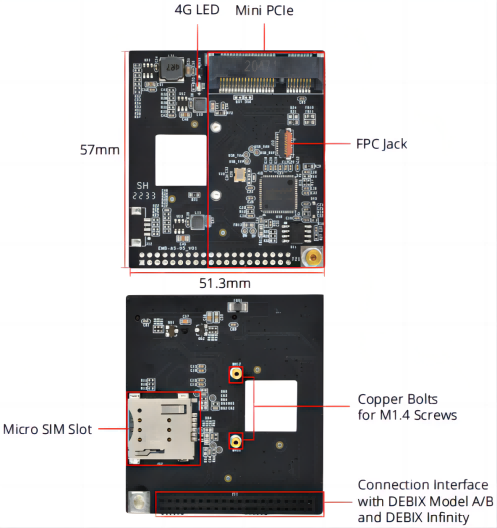

Specification


SIM Slot

1 x Micro SIM slot (push pop-up slot)

Mini PCIe 1 x Mini PCIe for 4G module, 52Pin, 5.2mm (H)
FPC Jack 1 x Flip-type FPC Jack for connection with DEBIX Model A/B, 19Pin 0.3mm pitch
LED 1 x 4G Running Indicator
Antenna

1 x 4G Antenna

Dimension 57mm(L) x 51.3mm(W) x 1.6mm(H)


Documents


DEBIX Model A 4G Board Product Brief

Getting Started Guide (Chapter 7)

DEBIX Model A 4G Board Schematics

DEBIX Model A 4G Board Mechanical Drawings
