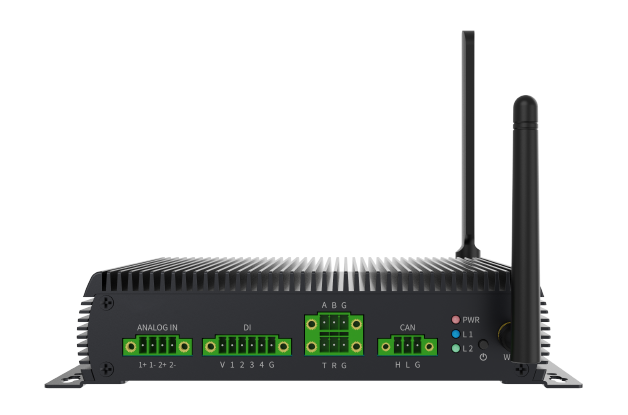

BPC-iMX8MP-06 Industrial Computer
BPC-iMX8MP-06
-
OverviewBPC-iMX8MP-06 Industrial Computer is composed of a DEBIX SOM A (core board), a customized carrier board and an aluminium enclosure. Engineered for industrial applications with fanless design and compact appearance, it comes with rich isolated interfaces including 4 x DI, 1 x RS232, 1 x RS485, 1 x CAN, and 2 x Analog IN for improved safety. It has strong network connectivity with dual Gigabit Ethernet supporting IEEE 802.3af POE external power supply, 2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0, one M.2 B-KEY 3042 (default)/3052 interface to support expansion of 4G/5G network module, and one M.2 M-KEY 2280 (default)/2242 interface to support NVME SSD storage.
-
Main Features○ Utilizes DEBIX SOM A core board and Customized carrier board;
○ Support boot from eMMC (default), Micro SD;
○ Support Ubuntu and Yocto operating systems;
○ Strong connections including dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0 and one M.2 B-KEY 3042 (default)/ 3052 interface for expansion of 4G/5G module;
○ 2 x USB 3.0, 2 x USB 2.0;
○ 1 x HDMI, 1 x Cell antenna interface, 1 x GPS antenna interface, 1 x WiFi antenna interface, 1x Div 4G/5G diversity antenna interface (reserved);
○ Isolated interfaces: 1 x RS232, 1 x RS485, 1 x CAN, 4 x DI, 2 x Analog IN.
Specification
| System | |
| Motherboard | DEBIX SOM A (Core Board) and Customized Carrier Board |
| Memory | Onboard 4GB LPDDR4 |
| Storage | Onboard 64GB eMMC |
| OS | Ubuntu, Yocto-L5.10.72_2.0.0 |
| Boot |
(1) Support boot from eMMC on DEBIX SOM A (default) (2) Support boot from Micro SD on carrier board |
| Communication | |
| Gigabit Ethernet | 2 x Independent MAC Gigabit Ethernet port, both support IEEE 802.3af POE external power supply |
| Wi-Fi & BT | 2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0, external SMA antenna for Wi-Fi |
| Cell | 1 x 4G/5G network module, external SMA antenna for Cell (optional) |
| GPS | 1 x GPS module, external SMA antenna for GPS (optional) |
| Video | |
| HDMI | 1 x HDMI output, Type-A female socket |

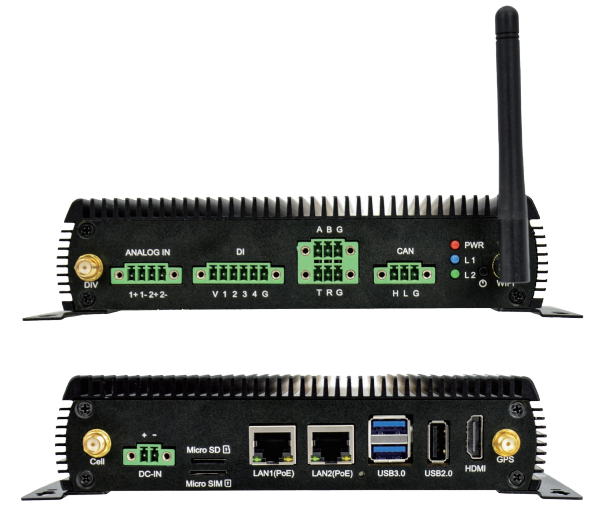

| I/O Interface | |
| Power socket | 1 x 2Pin/3.5mm pitch Phoenix terminal |
| USB |
(1) 2 x USB 3.0 Host, double-layer Type-A interface (2) 1 x USB 2.0 Host, Type-A interface |
| Serial port |
(1) 1 x Isolated RS232 (2) 1 x Isolated RS485 |
| CAN | 1 x Isolated CAN |
| DI | 4 x Isolated DI, support wet contact |
| Analog IN | 2 x Isolated Analog IN |
| Slot |
(1) 1 x Micro SIM slot (2) 1 x Micro SD slot |
| LED & Key |
(1) 1 x Power LED (2) 1 x L1 LED (3) 1 x L2 LED (4) 1 x ON/OFF Key |
| Power Supply | |
| Power Input | DC 12V power input for default, supports DC 12V-36V |
| Temperature | |
| Operating Temp. | -40°C~85°C (If SSD card is inserted, the temperature range is 0°C~70°C) |
| Mechanical & Environmental | |
| Enclosure Material | Aluminum alloy |
| Dimensions | 169.6mm x 143.6mm x 39.0mm (L x W x H) |
| Weight | 851g (±0.5g) |
