BPC-iMX93-02 IoT Gateway
BPC-iMX93-02
-
Overview
The BPC-iMX93-02 provides a robust and secure data gateway solution for various industrial applications like automation, monitoring, and remote control. Its combination of efficient processing and diverse connectivity options makes it a reliable choice for industrial environments requiring high performance and secure and reliable data communication.
-
Main Features• NXP i.MX 93 processor
• Ubuntu Server, Yocto 4.2-L6.1.22_2.0.0, Debian 10 Server
• 2 x Gigabit Ethernet, 1 x WIFI, 1 x BLE BT5.2 (optional: 4G, LoRa, UWB)
• 1 x USB 2.0 Host (USB OTG available through software configuration)
• 1 x Micro SIM, 2 x RS485, 2 x RS232, 2 x CAN, 1 x Reset
• 1 x Power LED, 2 x GPIO LED
Specification
|
System |
|
|
CPU |
NXP i.MX9352, 2x Arm® Cortex®-A55@1.7GHz, 1x Arm® Cortex®-M33 @250MHz, 1x Arm® Ethos™-U65 microNPU. (i.MX 93 series CPU optional) |
|
Memory |
1GB LPDDR4 (2GB optional) |
|
Storage |
Onboard 8GB eMMC (16GB/32GB/64GB/128GB/256GB optional) |
|
OS |
Ubuntu Server, Yocto 4.2-L6.1.22_2.0.0, Debian 10 Server |
|
Communication |
|
|
Network |
1 x Gigabit Ethernet port, supports TSN 1 x Gigabit Ethernet port |
|
4G |
1 x 4G (optional) |
|
LoRa |
1 x LoRa (optional) |
|
UWB |
1 x UWB (optional) |
|
WIFI & BT |
2.4GHz & 5GHz WIFI IEEE 802.11a/b/g/n, BT5.2 |
|

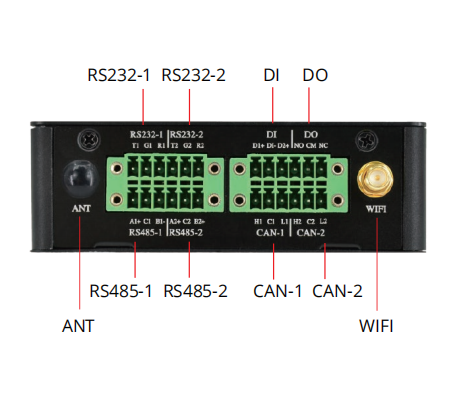

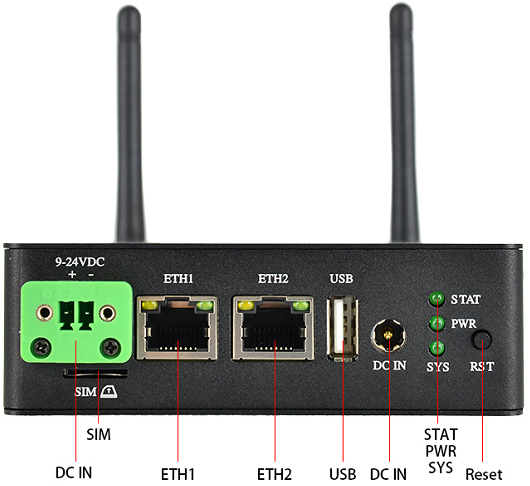

I/O Interfaces |
|
|
USB |
1 x USB 2.0 Host, USB OTG available via software configuration |
|
SIM |
1 x Micro SIM |
|
RS485 |
2 x RS485 |
|
RS232 |
2 x RS232 |
|
CAN |
2 x CAN |
|
LED |
1 x Power LED, 2 x GPIO LED (functions can be customized) |
|
Reset |
1 x Reset |
|
SMA RF |
1 x WIFI antenna, 1 x 4G/LoRa/UWB antenna (optional) |
|
Power Supply |
|
|
DC-IN |
DC 12V/2A, 1 x DC socket, 1 x 2Pin 3.81mm Phoenix, support 12V~24V wide voltage input |
|
Mechanical & Environmental |
|
|
Dimension |
107mm x 107mm x 35mm |
|
Material |
Aluminum alloy |
|
Net Weight |
385g |
|
Operating Temp. |
-20℃~70℃ (-40℃ to 85℃ optional) |
