DEBIX Fanless Aluminum Enclosure
EMC-7090B R3576-01
-
Overview
This fanless aluminum enclosure is designed specifically for DEBIX R3576-01. Due to its small form-factor design, it has an increased surface area for enhanced heat dissipation while retaining access to all of the ports.
Compatibility
DEBIX R3576-01
-
Main Features• Can be used with DEBIX R3576-01
• Rigid aluminum alloy enclosure
• Increased surface area for enhanced heat dissipation

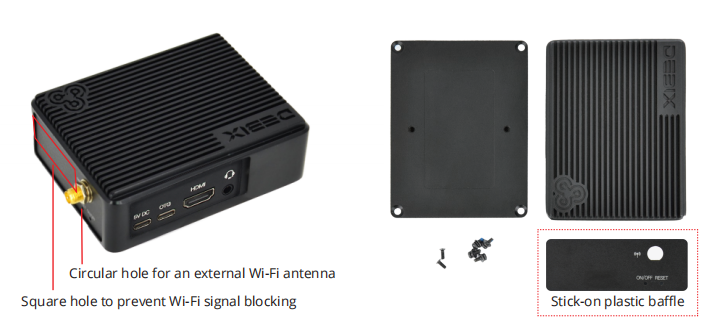

• The right side of the enclosure is designed with a square hole and a stick-on plastic baffle to prevent Wi-Fi signal blocking
• A circular hole is reserved on the right side for an external Wi-Fi antenna
Specification
| Packing List |
|
1pc aluminum alloy enclosure |
| All screws needed |
| 1pc conductive rubber pad |
| Mechanical |
| Enclosure Dimension: 93.47mm x 72.36mm x 30.15mm |
| Net Weight: 0.143KG (Conductive pad not included) |
Notice: The enclosure of the DEBIX R3576-01 do not support Micro SD slot
