DEBIX Fanless Aluminum Enclosure

EMC-7090B Infinity

  • Overview

    This fanless aluminum enclosure is designed specifically for DEBIX Infinity. Due to its small form-factor design, it has an increased surface area for enhanced heat dissipation while retaining access to all of the ports.



    Compatibility

    DEBIX Model Infinity

  • Main Features
    • Can be used with DEBIX Infinity
    • Rigid aluminum alloy enclosure
    • Increased surface area for enhanced heat dissipation

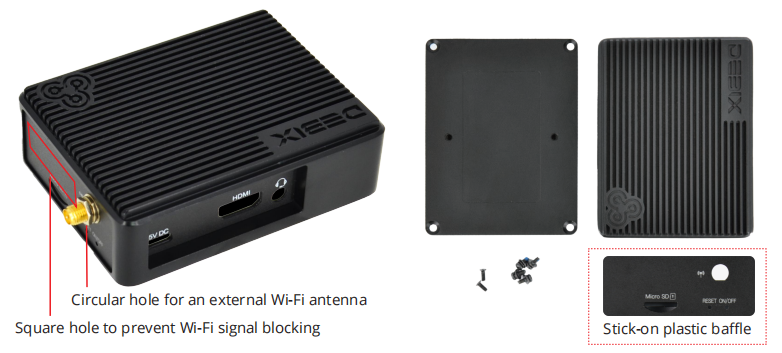

    • The right side of the enclosure is designed with a square hole and a stick-on plastic baffle to prevent Wi-Fi signal blocking
    • A circular hole is reserved on the right side for an external Wi-Fi antenna
Specification

Packing List

1pc aluminum alloy enclosure

All screws needed

1 pc conductive pad

1 pc external Wi-Fi antenna

Mechanical

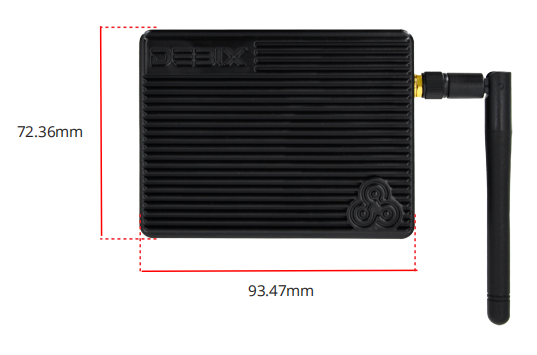

Enclosure Dimension: 93.47mm x 72.36mm x 30.15mm

Net weight: 0.152KG (Conductive pad not included)



Documents


DEBIX Fanless Aluminum Enclosure Product Brief
