BPC-iMX8MP-08 Industrial Computer
BPC-iMX8MP-08
-
Overview
BPC-iMX8MP-08 Industrial Computer is composed of a DEBIX customized board and an aluminium enclosure. Engineered for industrial applications with fanless design and compact appearance, it comes with rich isolated interfaces including 4 x DI, 4 x DO, and 1 x CAN for improved safety. It has strong network connectivity with dual Gigabit Ethernet supporting IEEE 802.3 af POE PSE/PD, 2.4GHz & 5GHz Wi-Fi and Bluetooth 5.3, supports 4G/5G via Mini PCIe. And two HDMI OUT, one LVDS support 4K@30Hz + 1080P@60Hz Dual screen display.
-
Main Features• NXP i.MX 8M Plus with 4x ARM Cortex-A53 cores and 2.3 TOPS NPU for AI tasks.
• Dual Gigabit Ethernet ports with PoE, WiFi & Bluetooth 5.3, Mini PCIe slot for 4G module, and various antenna options.
• Dual HDMI outputs, LVDS support for connecting displays.
• Rich set of I/O including 6x USB 3.0 ports, debug port, COM ports, CAN, I2C, SPI, digital inputs/outputs.
• Fanless design with an aluminum enclosure for harsh industrial environments.
Specification
|
System |
|
|
CPU |
NXP i.MX 8M Plus, 4 x ARM Cortex-A53, 1.6GHz, 2.3 TOPS NPU |
|
Memory |
2GB LPDDR4 (4GB/8GB optional) |
|
Storage |
16GB eMMC (32GB/64GB/128GB/256GB optional) |
|
OS |
Android 11, Ubuntu 20.04, Debian 12.6, Yocto-L6.6.23_2.2.0, Windows 10 IoT Enterprise (4GB/8GB LPDDR4 version)
|
|
Communication |
|
|
Gigabit Ethernet |
2 x Gigabit Ethernet ports (independent MAC address), support IEEE 802.3af (1 x POE PD & TSN, 1 x POE PSE) |
|
WIFI & BT |
1x M.2 2230 2.4GHz&5GHz WIFI and BT5.3 Combo Module (optional) |
|
4G |
1 x Mini PCIe 4G/5G Module (optional) |
|
Antenna |
3 x ANT (1 x 4G Main ANT, 1 x WiFi Main ANT, 1 x WiFi Diversity ANT+BT Main ANT) |
|
HDMI |
2 x HDMI OUT |
|
LVDS |
1 x LVDS, single & dual channel 8 bit |
|
Backlight |
1 x Backlight for LVDS |
|
Audio |
1 x 3.5mm Headphone and Mic combo port |
|

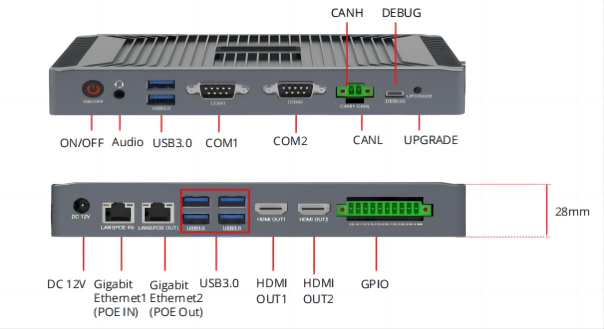

I/O Interface |
|
|
LED & KEY |
(1) 1 x ON/OFF System Key with LED (2) 1 x Upgrade Key (eMMC firmware upgrade and update for system storage) |
|
DC IN |
1 x DC IN female connector for 5.5 x 2.1mm DC plug |
|
USB 3.0 |
6 x USB 3.0 Host |
|
Debug |
1 x System Debug, UART to USB Type-C |
|
COM |
2 x COM (RS232 for default, supports RS485 via internal DIP switch) |
|
CAN |
1 x CAN |
|
I2C |
1 x I2C |
|
SPI |
1 x SPI |
|
DIN/DO |
(1) 4 x Digital Output (2) 4 x Digital Input |
|
Power Supply |
|
|
Power Supply |
DC 12V/3A |
|
Mechanical & Environmental |
|
|

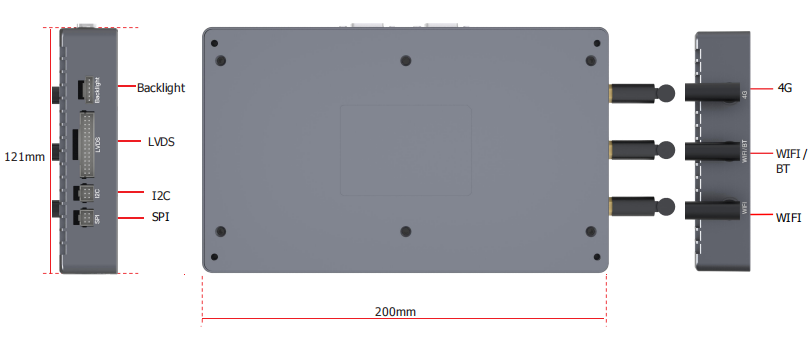

Dimension |
200.0mm x 121.0mm x 28.0mm (±0.5mm) |
|
Operating Temp. |
-20°C ~ 70°C (-40°C ~ 85°C optional) |
|
Enclosure Color |
Grey (Black is optional) |
|
Enclosure Material |
Aluminum alloy |
