DEBIX Camera Adapter Board
EMB-AS-08
-

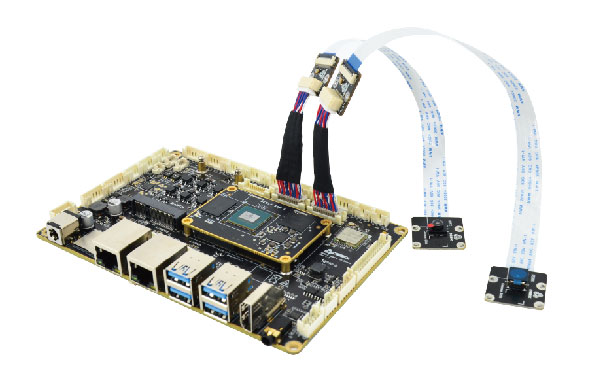

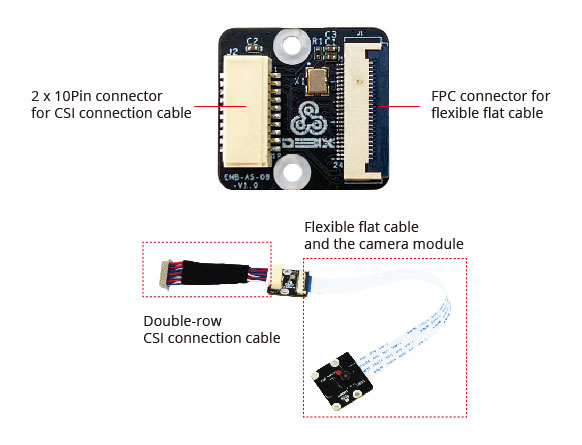

OverviewCamera Adapter Board is an add-on board designed for DEBIX SOM A I/O Board to allow the connection with DEBIX Camera Modules. It has a FPC connector for the flexible flat cable of the camera module and a 2 x 10Pin connector for the CSI connection cable.
-
Main Features• Includes the double-row CSI connection cable
• Designed for DEBIX SOM A I/O Board
• Compatible with Camera 200A, Camera 500A and Camera 1300A
Specification
|
Interfaces |
|
|
Double-row Connector |
1 x double-row connector for the CSI cable of the DEBIX SOM A I/O Board |
|
FPC connector |
1 x FPC connector for the FPC cable of the DEBIX camera module |
|
Mechanical |
|
|
Dimension |
21.0mm(L) x 20.0mm(W) (±0.5mm) |
Documents
Camera Adapter Board Product Brief
Camera Adapter Board User ManualCamera Adapter Board Schematics
