OKdo 8" 800 x 1280 TTF LCD Monitor
2539307(RS stock number)
-
Overview

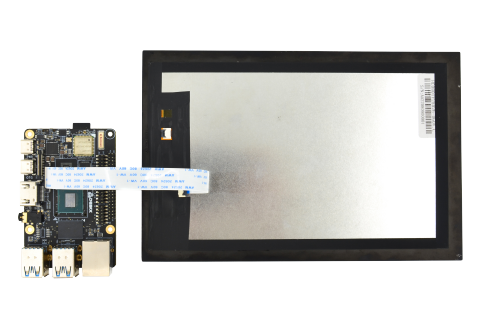

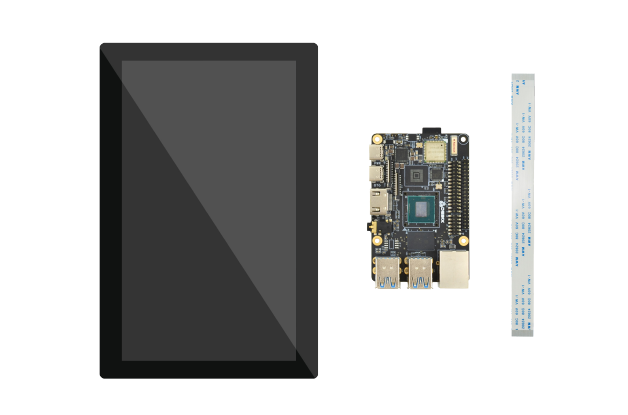

This OKdo monitor is a 8" display by MIPI interface with 800 x 1280 resolution. It supports types of display modes such as TFT, transmissive and normally black. The monitor is connected to DEBIX via a 4 Lanes MIPI interface.
Compliance
· RoHS
· Meet the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
-
Main Features• 8" 800*1280 display size
• Full view
• TFT, transmissive, normally black display modes
• 4 Lanes MIPI interface
• White LED backlights
Specification
| Item | Specification |
| LCD size | 8" |
| Display mode | TFT/Transmissive/Normally black |
| Resolution | 800(RGB) x 1280 |
| Viewing direction | Full view |
| Backlight | White LED x 21 |
| Outline dimension |
130.24(W) x 198.82(H) x 4.55(D)mm |
| Active area | 107.64(W) x 172.22(H)mm |
| Dot pitch | 0.0449(W) x 0.1346(H)mm |
| Pixel pitch | 0.1346(W) x 0.1346(H)mm |
| LCM interface | 4 Lanes MIPI interface |
| Touch interface | IIC |
| Operating temp. | -10°C to 50°C |
| Storage temp. | -20°C to 60°C |
| Polarizer |
Top: IPS film Bottom: IPS film |
