DEBIX 7" 1024 x 600 HDMI LCD Monitor

DEBIX TD070H

  • Overview

    DEBIX TD070H is a 7-inch touch screen HDMI LCD monitor with 1024 x 600 resolution. The LCD monitor supports VGA and HDMI video signal input, power amplifier speaker and headphone output, touch operation, and remote control function.




    Compatibility

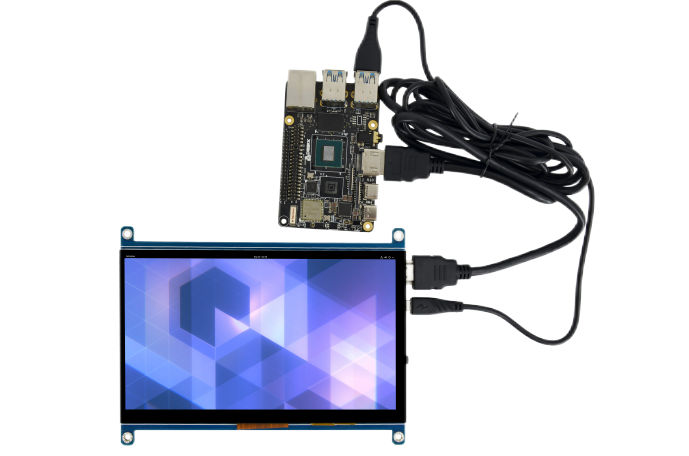

    Compatible with DEBIX series computers with HDMI ports

  • Main Features
    • 7.0" 1024 x 600 display size
    • VGA and HDMI video signal input
    • Touch operation
    • Power amplifier speaker and headphone output
    • Remote control function
    • No-signal automatic power off function
Specification

DEBIX TD070H

LCD Size

7 inchesDiagonal

Resolution

1024 x 600

Active Area

154.21mm x 85.92mm

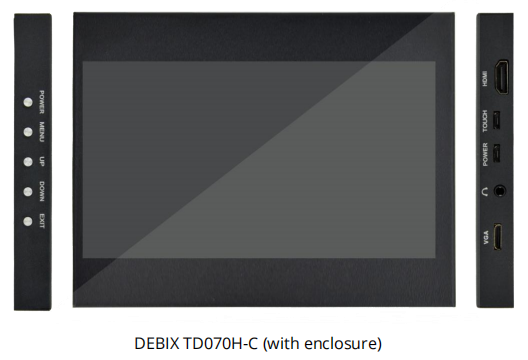

Outline Dimension (DEBIX TD070H-C)

170.00mm x 131.00mm x 17.00mm

Touch Interface

1 x Micro USB

Optional Function

(1)Power amplifier speaker

(2)Remote control function

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating Humidity

90%RH (no condensation)

Input Voltage

DC 5V

Net Weight

214g(±0.5g

Net Weight (DEBIX TD070H-C)

510g(±0.5g




Document

DEBIX TD070H Product Brief

DEBIX TD070H User Guide
