DEBIX 5" 800 x 480 HDMI LCD Monitor
DEBIX TD050H
-
Overview
DEBIX TD050H is a 5-inch touch screen HDMI LCD monitor with 800 x 480 resolution. The LCD monitor supports VGA and HDMI video signal input, power amplifier speaker and headphone output, touch operation, and remote control function.
Compatibility

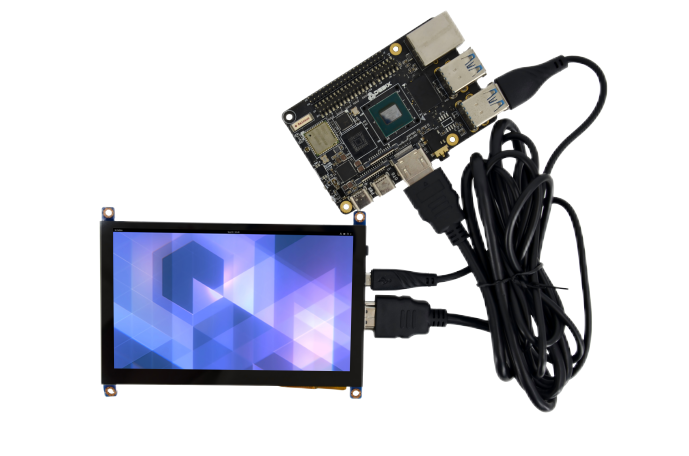

Compatible with DEBIX series computers with HDMI ports.png)
-
Main Features• 5.0" 800*480 display size
• VGA and HDMI video signal input
• Touch operation
• Power amplifier speaker and headphone output
• Remote control function
• No-signal automatic power off function
Specification
|
DEBIX TD050H |
|
|
LCD Size |
5 inches（Diagonal） |
|
Resolution |
800 x 480 |
|
Active Area |
108.00mm x 64.80mm |
|

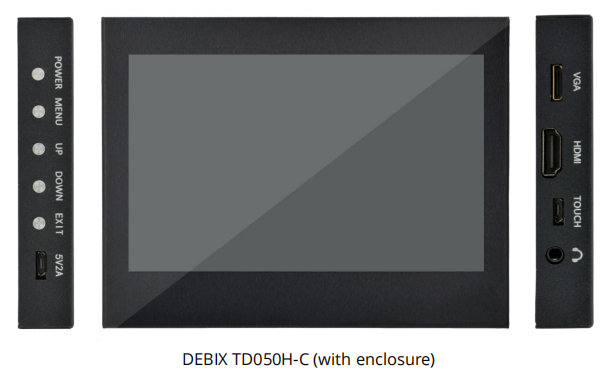

Outline Dimension (DEBIX TD050H-C) |
126.00mm x 96.00mm x 17.00mm |
|
Touch Interface |
1 x Micro USB |
|
Optional Function |
(1)Power amplifier speaker (2)Remote control function |
|
Operating Temp. |
-10℃~60℃ |
|
Storage Temp. |
-20℃~70℃ |
|
Operating Humidity |
90%RH (no condensation) |
|
Input Voltage |
DC 5V |
|
Net Weight |
118g（±0.5g） |
|
Net Weight ( DEBIX TD050H-C ) |
286g（±0.5g） |
Notice:
The aluminum alloy enclosure is optional.
