DEBIX 10.1" 1280 x 800 TFT LCD Monitor
DEBIX TD101A
-
Overview

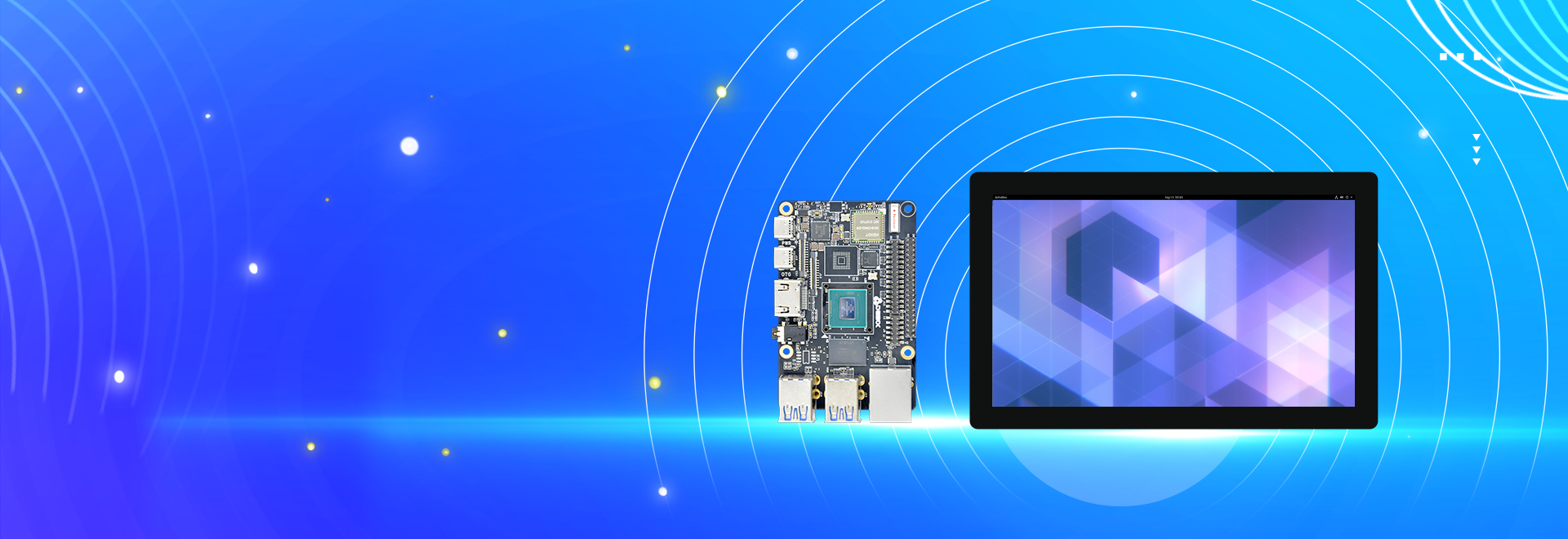

DEBIX TD101A LCD monitor comes with a 1280 x 800 display which has the size of 10.1". With LVDS display interface and USB touch interface, it is composed of a TFT-LCD panel, driver ICs and a backlight unit. The driver element is a-Si TFT active matrix.
Compatibility
Compatible with all DEBIX series
.png)
-
.jpg)
Main Features• 10.1" 1280*800 display size
• IPS with Normally Black display mode
• LVDS Interface
• RGB-stripe colour arrangement
Specification
|
Parameter |
|
|
Model |
DEBIX TD101A |
|
LCD Size |
10.1 inch (Diagonal) |
|
Driver Element |
a-Si TFT active matrix |
|
Resolution |
1280 x 800 |
|
Display Mode |
IPS with Normally Black |
|
Active Area (W x H) |
216.96mm x 135.60mm |
|
Outline Dimension (W x H x D) |
228.91mm x 148.57mm x 2.65mm |
|
Colour Arrangement |
RGB-stripe |
|
LVDS Interface |
1 x LVDS, the connector is 20Pin header |
|
Touch Interface |
1 x USB, the connector is 4Pin header |
|
Luminance |
320 cd/m2 (Typ.) |
|
Operating Temp. |
-20°C to 70°C |
|
Storage Temp. |
-25°C to 75°C |
|
Input Voltage |
DC 5V |
|
Certification |
ROHS |
