Industrial Applications
-

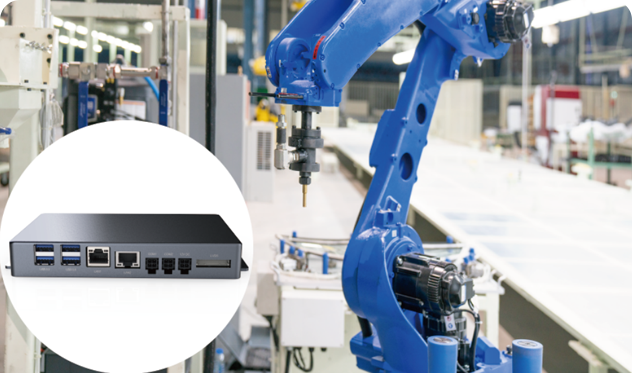

Industrial Machine Tool Control ComputerDestination: Poland
Architecture: DEBIX Model A (customized)
Operating System: Ubuntu 20.04
(1) Industrial grade CPU and components. 2.3 TOPS NPU helps to perform challenging tasks and realize industrial automation
(2) Connection and control of peripheral devices
(3) With LVDS interface for video output -

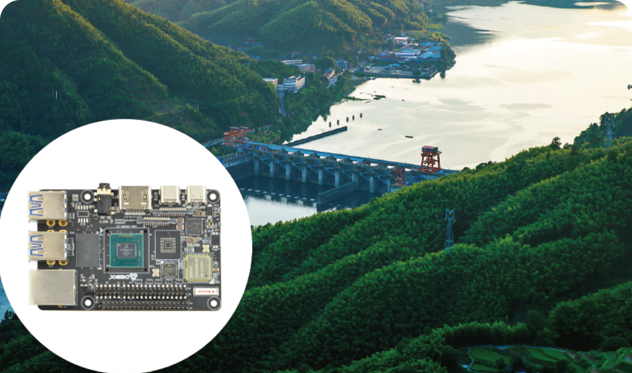

Water Conservancy IoT ComputerDestination: Worldwide
Architecture: DEBIX Model A (without enclosure)
Operating System: Ubuntu 20.04
(1) Recognize objects on the water surface
(2) Detect dangerous situations such as someone falling into water and rising water, etc.
(3) Connected with the alarm device to realize automatic alarms -
Intelligent Number Plate Recognition SystemDestination: Worldwide
Architecture: DEBIX Model A
Operating System: Ubuntu 20.04
(1) Use the AI algorithm to build innovative automatic number plate recognition system
(2) Accurately locate the violation position
(3) Reduce the number of over-speed driving and make roads safer -
Optical Fiber and Network Maintenance TerminalDestination: China
Architecture: DEBIX Model A
Operating System: Ubuntu 20.04
(1) Collection and display of 4 independent video signals
(2) Support face recognition, HDMI IN, document photography, and optical fiber cross-section monitoring
(3) Interactive communication of multiple networks such as wired network, Wi-Fi and 4G -
Industrial Ethernet Master StackArchitecture: DEBIX Model A
(1) Support large throughput of 100Mbps-2.5Gbps
(2) High performance on control loop time at 125μs~2ms
(3) Supports Real-time Control and Time Sensitive Networking
(4) Meet the requirements to build a full-function master stack to support common platforms
(5) Application fields: robots, motion control, CNC and PLC, etc. -
5G Industrial IoT GatewayArchitecture: DEBIX Model A
(1) Deployed as a network terminus or a network router
(2) WAN and LAN are bridged together via Ethernet and USB 3.0 interfaces
(3) For network routing it supports ~500Mbps for mixed packet sizes, or ~1.5Gbps for large packets with standard Linux networking stack
(4) For network termination it also has good performance -
Sound BarArchitecture: Audio Board
(1) One-chip solution with flexible SW audio framework (Immersiv3D)
(2) Support 6 x SAI, HiFi4 DSP, 1 x SPDIF IN and 1 x SPDIF OUT
(3) Handle audio decode and pre/post processing (supporting Dolby Atmos), latency control and audio distribution
(4) Easy to add voice assistant services (AVS and GVA) with multichannel AEC and E to create an immersive experience. -
Real-time Edge SolutionArchitecture: DEBIX Model A
(1) Utilizes RTOS on Cortex-M and Cortex-A core to build a real-time system
(2) Utilizes Time Sensitive Networking
(3) Supports critical industrial protocols such as EtherCAT and HSR
(4) Better scheduling latency, high-performance data transfer and effective sharing of physical I/O between different cores
