DEBIX SBC PoE Module
EMB-AS-06
-
Overview

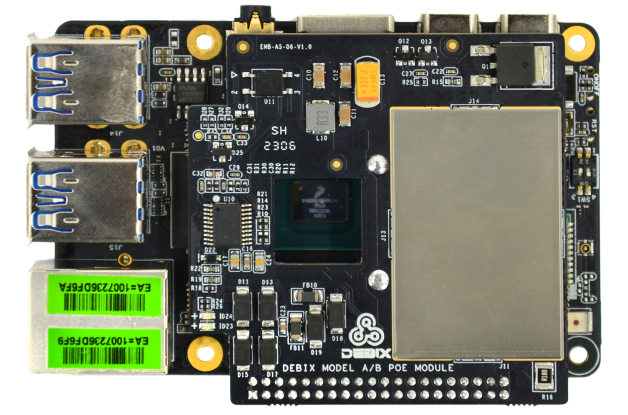

DEBIX SBC PoE Module is compatible with DEBIX Model A, DEBIX Model B, DEBIX Model C and DEBIX Infinity SBC, which have a RJ45 Gigabit Ethernet port supporting PoE function. It provides stable DC power for your DEBIX SBC and reduces the cost of constructing network infrastructure.
Compatibility
· Compatible with DEBIX Model A, DEBIX Model B, DEBIX Model C and DEBIX Infinity SBC
· Can be installed with DEBIX Model A or DEBIX Model B in the EMC-7090B enclosure
-
Main Features• Support IEEE 802.3at-2009 PoE protocol
• DC 5V/4A output to power up your DEBIX SBC

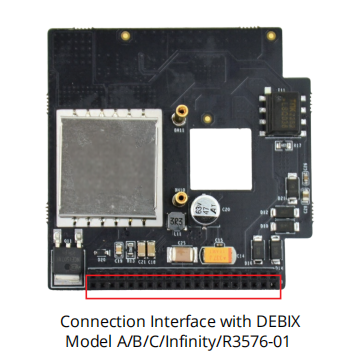

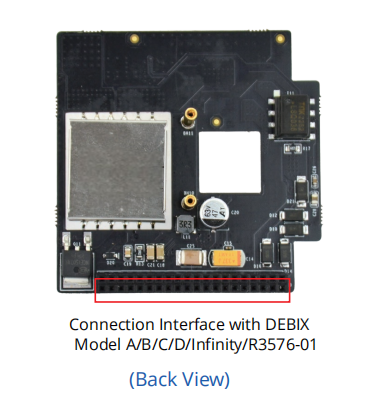

• Easy connection through a socket connector on the back side
Specification
|
|
|
| LED |
1 x PoE Power Input LED, 1 x 5V Power Output LED |
| Support Protocol |
IEEE 802.3at-2009 PoE |
| Power Input | DC 50V-57V, Class 4 device |
| Power Output | DC 5V/4A |
| Dimension |
57mm(L) x 51.3mm(W) x 1.6mm(H)
The highest component of the TOP layer and the BOT layer are 4mm and 10mm respectively. |
| Operating Temp. | -40°C~85°C |
| Net Weight | 33g (±0.5g) |
