DEBIX 10.1" 1280 x 800 HDMI LCD Monitor

DEBIX TD101H

  • Overview

    DEBIX TD101H is a 10.1-inch touch screen HDMI LCD monitor with 1280 x 800 resolution. The LCD monitor supports VGA and HDMI video signal input, power amplifier speaker and headphone output, touch operation, and remote control function.



    Compatibility

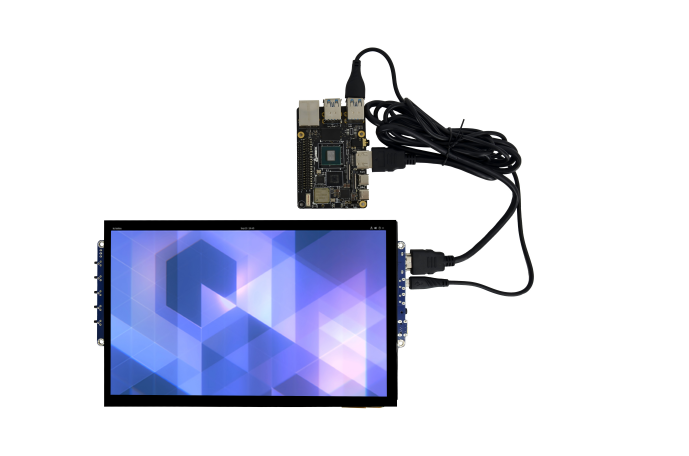

    Compatible with DEBIX series computers with HDMI ports

  • Main Features
    • 10.1” 1280*800 display size
    • VGA and HDMI video signal input
    • Touch operation
    • Power Amplifier speaker and headphone output
    • Remote control function
    • No-signal automatic power off function
Specification

DEBIX TD101H

LCD Size

10.1 inchesDiagonal

Resolution

1280 x 800

Active Area

135.36mm x 216.58mm

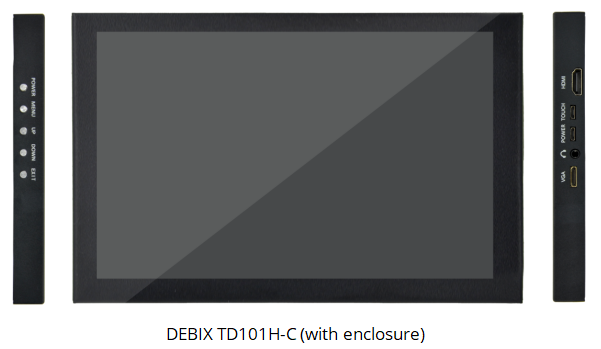

Outline Dimension (DEBIX TD101H-C)

252.00mm x 160.00mm x 17.00mm

Touch Interface

1 x Micro USB

Optional Function

(1)Power amplifier speaker

(2)Remote control function

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating Humidity

90%RH (no condensation)

Input Voltage

DC 5V

Net Weight

365g(±0.5g

Net Weight (DEBIX TD101H-C)

841g(±0.5g



Document

DEBIX TD101H Product Brief

DEBIX TD101H User Guide
